Weidmuller 1582350000 Terminal Block
Part Number # 1582350000
SKU # 2309045
$177.50 / 250Each
Typical price:$203.50 / Each
Weidmuller 1582350000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1582350000 |
| SKU #: | 2309045 |
| Dimensions: | 1.13 in L |
| Finish: | Tinned |
| Series: | RSV 1.6 C/Powerbus Series |
| Specifications: | 1-Pole, 0.75 to 1.5 sq-mm Clamping Range, 3.3 mOhm Volume Resistance, 4 mm L Stripping, 2 to 3.5 mm OD Insulation |
| Suitable For Use With: | PCB Plug-In Connector |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Type: | Long Pin |
| Country of origin: | DE |
| Material: | CuZn |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190033620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$177.50 / 250Each
Typical price:$203.50 / Each
Quantity:
- Weidmuller OMNIMATE Power Crimp Contact, Series: RSV 1.6 C/Powerbus Series, 18 to 16 AWG Wire/Contact, Long Pin Terminal, For Use With: PCB Plug-In Connector, Specifications: 1-Pole, 0.75 to 1.5 sq-mm Clamping Range, 3.3 mOhm Volume Resistance, 4 mm L Stripping, 2 to 3.5 mm OD Insulation, -50 to 100 deg C, CuZn, Tinned, 1.13 in L Dimensions
1582350000 Item Features
- The combination of RSV housings and Weidmuller crimp contacts enable custom adaptations to the specific requirements of your applications
- Safe centering of the contacts using the 3-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading pin contacts
- Up to 100 plugging cycles
1582350000 Standards
RoHS Compliant|IEC 60664-1|IEC 61984SKU #2309045Part Number #1582350000UNSPSC31163101UPC04008190033620

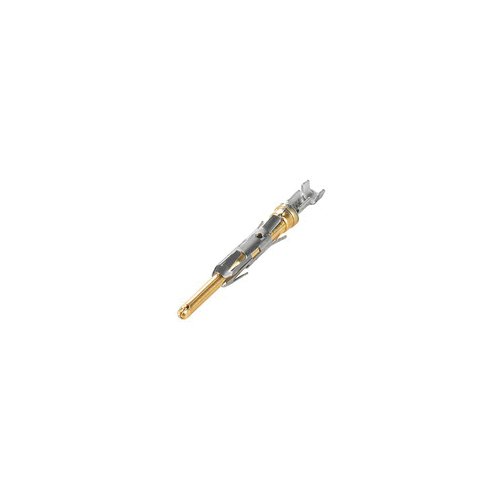

Image provided may only be a representation of final product and may include optional equipment
