1582450000
Weidmuller 1582450000 Quick Disconnects
Part Number # 1582450000
SKU # 2398025
$407.50 / 250Each
Typical price:$469.00 / Each
Weidmuller 1582450000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1582450000 |
| SKU #: | 2398025 |
| Dimensions: | 0.807 in L |
| Finish: | Gold Plated |
| Series: | RSV 1.6 C/Powerbus Series |
| Specifications: | 1-Pole, 2.5 sq-mm Max Clamping Range, 4.8 mOhm Volume Resistance, 4 mm L Stripping, 2.8 to 4.2 mm OD Insulation |
| Terminal Type: | Female Socket |
| Material: | CuZn |
| UNSPSC: | 31163101 |
| UPC: | 04008190014643 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$407.50 / 250Each
Typical price:$469.00 / Each
Quantity:
- Weidmuller OMNIMATE Power Crimp Contact, Series: RSV 1.6 C/Powerbus Series, 14 to 12 AWG Wire/Contact, Female Socket Terminal, For Use With: PCB Plug-In Connector, Specifications: 1-Pole, 2.5 sq-mm Max Clamping Range, 4.8 mOhm Volume Resistance, 4 mm L Stripping, 2.8 to 4.2 mm OD Insulation, -50 to 100 deg C, CuZn, Gold Plated, 0.807 in L Dimensions
1582450000 Item Features
- The combination of RSV housings and Weidmuller crimp contacts enable custom adaptations to the specific requirements of your applications
- Safe centering of the contacts using the 3-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading pin contacts
- Up to 500 plugging cycles
1582450000 Standards
RoHS Compliant|IEC 60664-1|IEC 61984|EAC CertifiedSKU #2398025Part Number #1582450000UNSPSC31163101UPC04008190014643

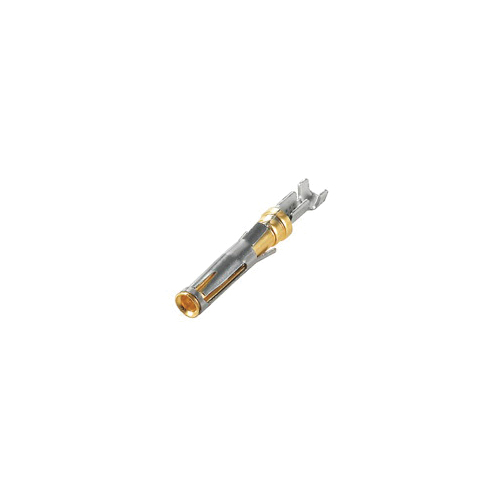

Image provided may only be a representation of final product and may include optional equipment
