Weidmuller 1597360000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1597360000
SKU # 1097423
1597360000
Weidmuller 1597360000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1597360000
SKU # 1097423
Weidmuller 1597360000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1597360000 |
| SKU #: | 1097423 |
| Dimensions: | 13 mm H x 7 mm W x 18.5 mm D |
| Series: | BL/SL 3.50 Series |
| Type: | Wire Connection |
| UNSPSC: | 31163101 |
| UPC: | 04008190435868 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1597360000 Printed Circuit Board Pcb Press Fit Header Connector
Brand: Weidmuller
Part Number: 1597360000

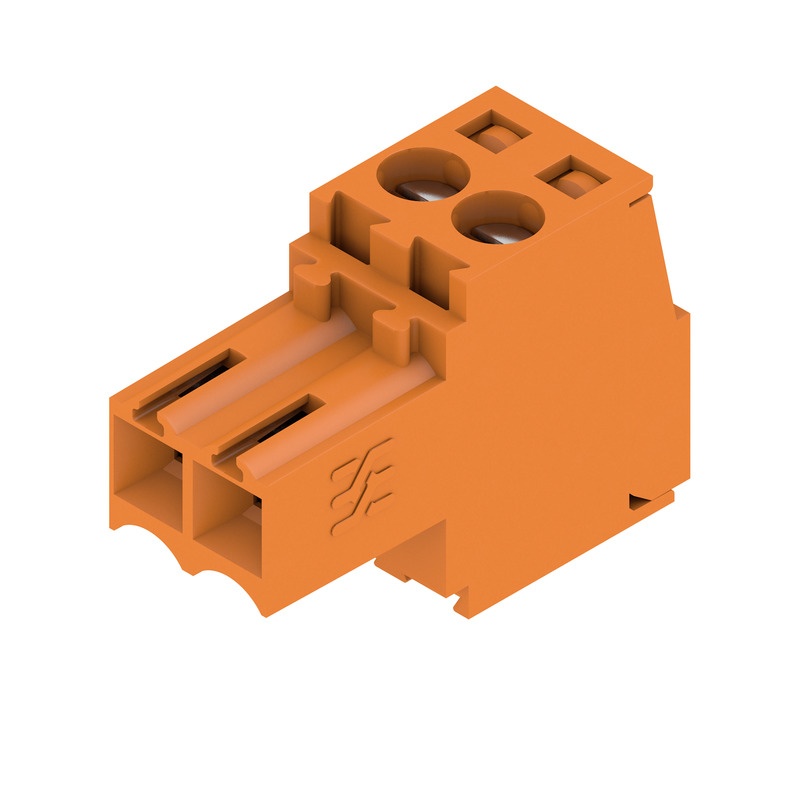

Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 3.50 Series, 2 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, 28 to 14 AWG Wire, 300/320 V, Female Plug Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 13 mm H x 7 mm W x 18.5 mm D Dimensions
Additional Description: WEID-1597360000 BL 3.50/02/180 SN OR BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 3.50 MM, NUMBER OF POLES: 2, CLAMPING YOKE CONNECTION
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
1597360000 Item Features
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
1597360000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #1097423Part Number #1597360000UNSPSC31163101UPC04008190435868
Image provided may only be a representation of final product and may include optional equipment
