Weidmuller 1597460000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1597460000
SKU # 1190538
1597460000
Weidmuller 1597460000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1597460000
SKU # 1190538
$386.82 / 42Each
Typical price:$445.54 / Each
Weidmuller 1597460000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1597460000 |
| SKU #: | 1190538 |
| Dimensions: | 13 mm H x 42 mm W x 18.5 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04008190192037 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$386.82 / 42Each
Typical price:$445.54 / Each
Quantity:

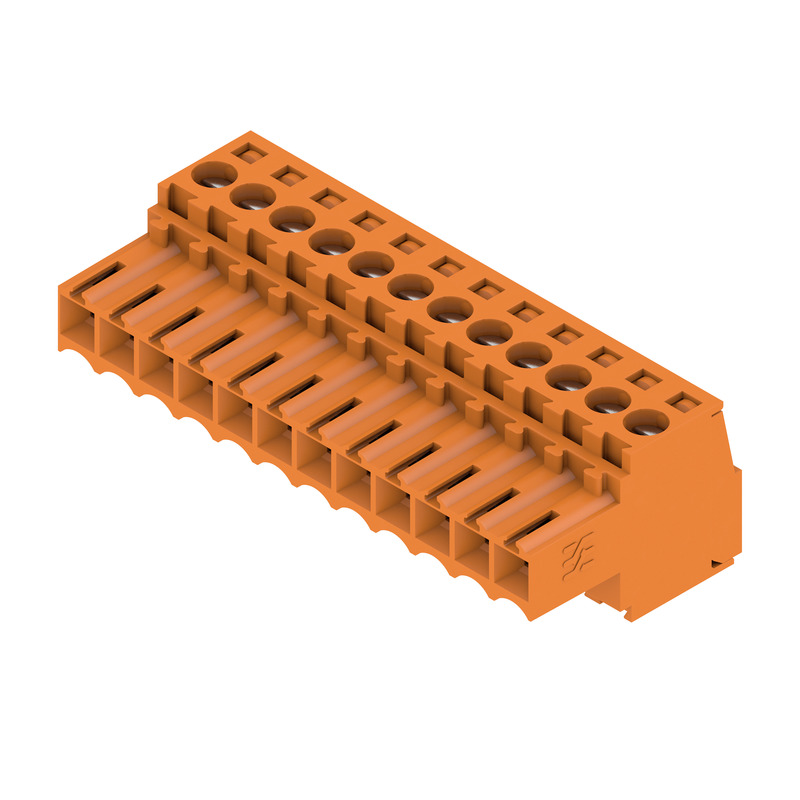

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 3.50 Series, 12 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, 28 to 14 AWG Wire, 300/320 V, Female Plug Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 13 mm H x 42 mm W x 18.5 mm D Dimensions
1597460000 Item Features
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
1597460000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #1190538Part Number #1597460000UNSPSC31163101UPC04008190192037
Image provided may only be a representation of final product and may include optional equipment
