1598080000
Weidmuller 1598080000 Electrical Terminal
Part Number # 1598080000
SKU # 2199685
Weidmuller 1598080000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1598080000 |
| SKU #: | 2199685 |
| Dimensions: | 1.575 in H x 0.315 in W x 2.087 in D |
| Temperature Rating (Degrees F): | -60 to 250 deg C |
| UNSPSC: | 39121410 |
| UPC: | 04008190020729 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1598080000 Electrical Terminal
Brand: Weidmuller
Part Number: 1598080000
Klippon® Feed-Through Terminal Block, 1-Tier, Series: SAK, 800 VAC, 32 A, 22 to 10 AWG Wire, 10 mm Wire Strip Length, 4 sq-mm Terminal, 0.5 to 1 N-m, Snap-On Mount, Clamping Yoke Screw, -60 to 250 deg C, Ceramic, White, 1.575 in H x 0.315 in W x 2.087 in D
Additional Description: WEID-1598080000 SAKK 4 KER/WS FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 2 CONTINUOUS RATING 210 DEG C
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1598080000 Item Features
- Countless approvals, specifications and the worlds most extensive range of terminal mean that SAK terminal can be used for a wide range of different applications
- Ambient temperatures are not an issue for the SAK series thanks to different materials such as polyamide, thermoplastics and heat-resistant ceramics
- The legendary high-strength steel screw clamp absorbs every geometric change to the connected conductor
- TS 32/TS 35 "2 in 1" combination foot
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 0.6 x 3.5 mm blade
- 1 mOhm volume-resistance
- For screwable cross-connection, one end without connector
- 8 kV rated impulse withstand voltage
- SAKK 4 KER/WS type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1598080000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2199685Part Number #1598080000UNSPSC39121410UPC04008190020729

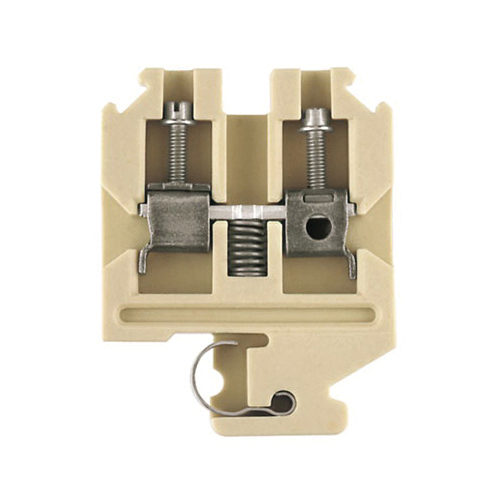

Image provided may only be a representation of final product and may include optional equipment
