1598090000

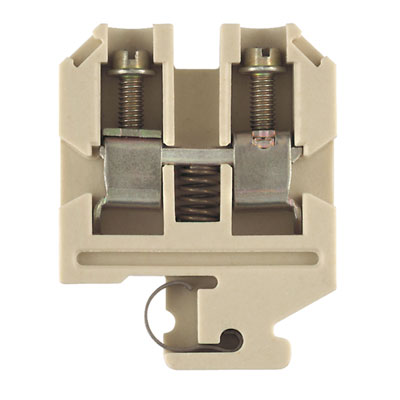

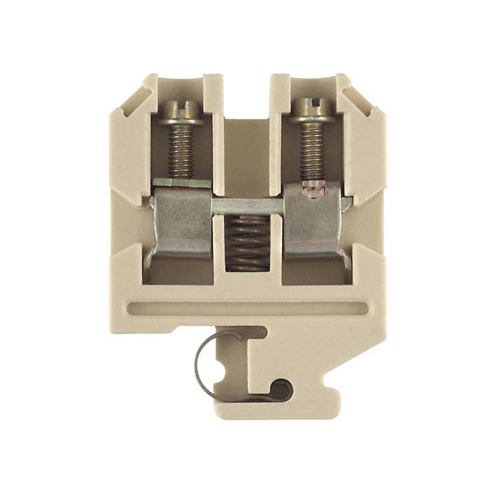

Weidmuller 1598090000 Electrical Terminal
Part Number # 1598090000
SKU # 2243560
$426.25 / 25Each
Typical price:$449.83 / Each
Weidmuller 1598090000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1598090000 |
| SKU #: | 2243560 |
| Temperature Rating (Degrees F): | -60 to 250 deg C |
| Material: | Ceramic |
| UNSPSC: | 39121410 |
| UPC: | 04008190185565 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$426.25 / 25Each
Typical price:$449.83 / Each
Quantity:
- Klippon Terminal Block, Feed-Through Modular, Series: SAK, 800 V, 57 A, 10 sq-mm Wire, 12 mm Wire Strip Length, M4 Terminal, 1.2 to 1.2 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 250 deg C, Ceramic, White, 40 mm H x 11.5 mm W x 53 mm D Dimensions
1598090000 Application
For high continuous temperature applications1598090000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1598090000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-290|ATEX File No. SIRA03ATEX3425U|IECEX File No. IECEXSIR05.0032U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|cULus Listed|EAC Certified|KEMA-KEUR CertifiedSKU #2243560Part Number #1598090000UNSPSC39121410UPC04008190185565
Image provided may only be a representation of final product and may include optional equipment
