Weidmuller 1601810000 Telecommunication Connector
Part Number # 1601810000
SKU # 2217618
1601810000
Weidmuller 1601810000 Telecommunication Connector
Part Number # 1601810000
SKU # 2217618
$174.50 / 50Each
Typical price:$200.85 / Each
Weidmuller 1601810000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1601810000 |
| SKU #: | 2217618 |
| Connector Type: | Male Header |
| Dimensions: | 31.25 mm H x 22.28 mm W x 22 mm D |
| Number of Positions: | 8 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection Closed Side |
| Contact material: | CuSn |
| Country of origin: | RO |
| Housing material: | PBT |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190105105 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$174.50 / 50Each
Typical price:$200.85 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Closed Side, Series: BL/SL 5.08 Series, 8 Positions, 2 Rows, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT Solder Termination, CuSn Contact, PBT Housing Material, -50 to 100 deg C, Orange, 31.25 mm H x 22.28 mm W x 22 mm D Dimensions
1601810000 Item Features
- 2-tier male header with parallel pin arrangement
- The solder pin length is optimized for wave flow soldering
- The pin headers provide space for labeling and can be coded
- 400 V IEC, 300 V UL
1601810000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 200039-1121690|UL 1059|UL No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability RatingSKU #2217618Part Number #1601810000UNSPSC31163101UPC04008190105105

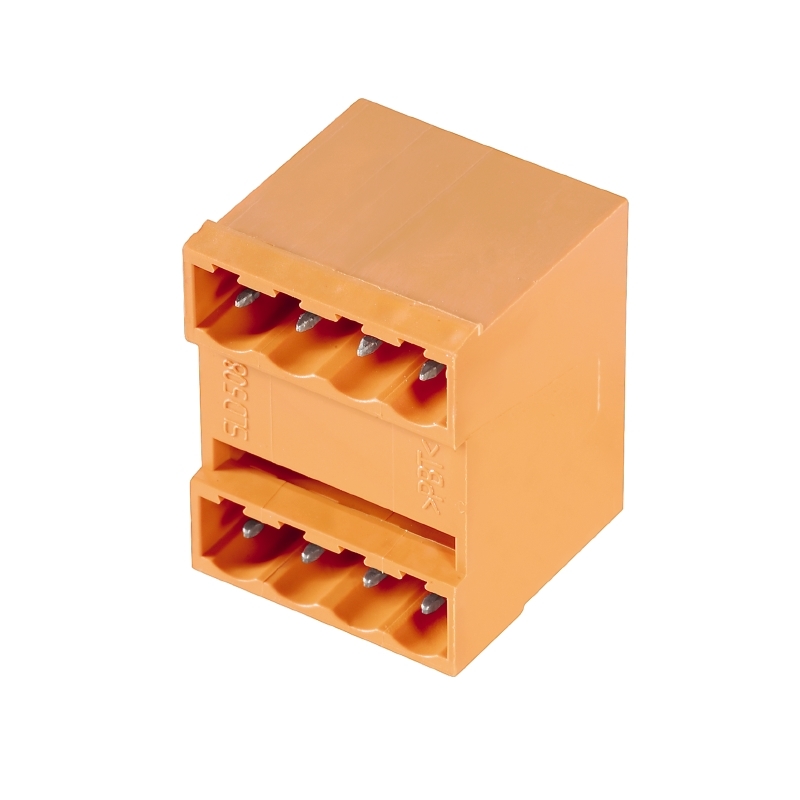

Image provided may only be a representation of final product and may include optional equipment
