1604610000
Weidmuller 1604610000 Cable Gland Connector
Part Number # 1604610000
SKU # 2260786
$215.50 / 50Each
Typical price:$248.30 / Each
Weidmuller 1604610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1604610000 |
| SKU #: | 2260786 |
| Connector Type: | Male Header |
| Dimensions: | 14.3 mm H x 57.4 mm W x 7.5 mm D |
| Number of Positions: | 16 |
| Series: | BL/SL 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection Closed Side |
| Contact material: | CuSn |
| Country of origin: | DE |
| Housing material: | PBT |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190112615 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$215.50 / 50Each
Typical price:$248.30 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Closed Side, Series: BL/SL 3.50 Series, 16 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, PCB Mounting, 300/320 V, Male Header Connector, THT Solder Termination, CuSn Contact, PBT Housing Material, -50 to 100 deg C, Orange, 14.3 mm H x 57.4 mm W x 7.5 mm D Dimensions
1604610000 Item Features
- Pin headers for wave soldering in 3.5 mm pitch
- Plugging direction is straight 180 deg to the PCB
- Pin header can be coded
- 320 V IEC, 300 V UL
1604610000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability RatingSKU #2260786Part Number #1604610000UNSPSC31163101UPC04008190112615

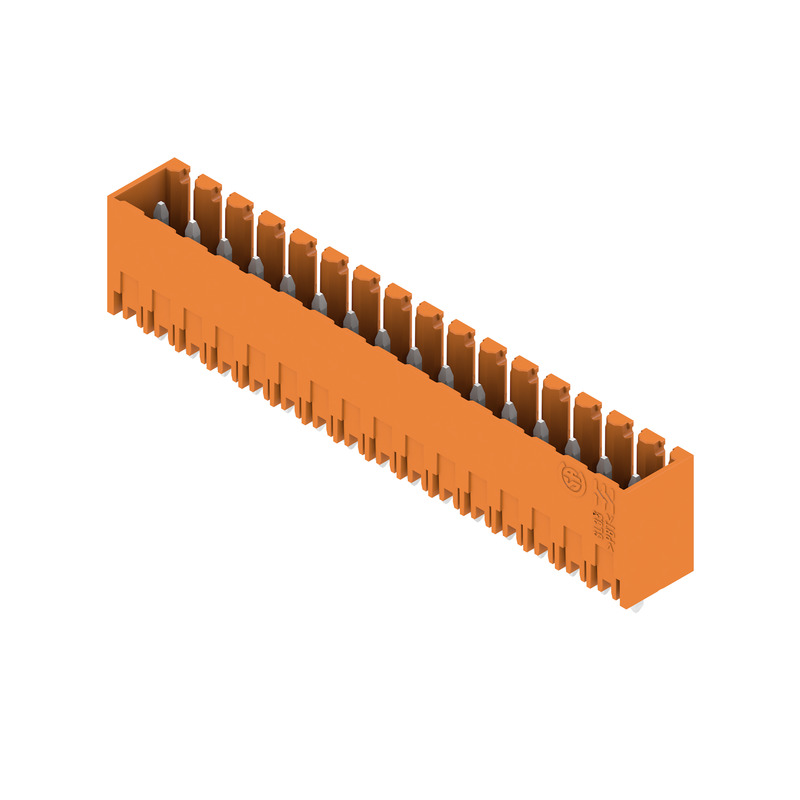

Image provided may only be a representation of final product and may include optional equipment
