Part Number # 1610200000
SKU # 1724274
Image Disclaimers Message
1610200000

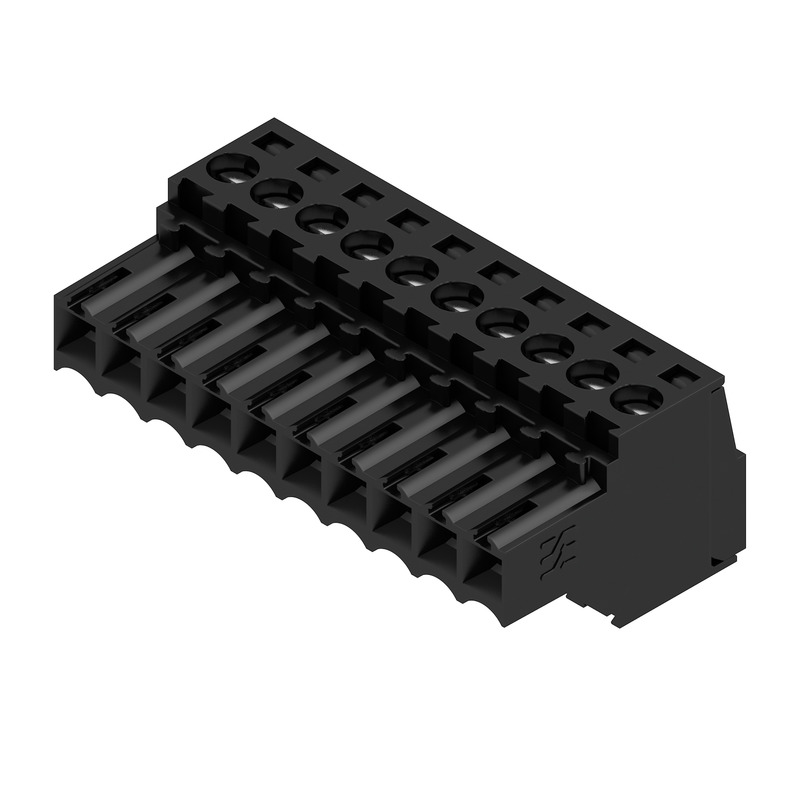

Weidmuller 1610200000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1610200000
SKU # 1724274
$372.00 / 48Each
Typical price:$418.37 / Each
Weidmuller 1610200000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1610200000 |
| SKU #: | 1724274 |
| Connector Type: | Female Plug |
| Dimensions: | 13 mm H x 35 mm W x 18.5 mm D |
| Number of Positions: | 10 |
| Series: | BL/SL 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Clamping Yoke |
| Type: | Wire Connection |
| Wire Size: | 28 to 14 AWG |
| Color: | Black |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190126940 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$372.00 / 48Each
Typical price:$418.37 / Each
Quantity:
Weidmuller 1610200000 Printed Circuit Board Pcb Press Fit Header Connector
Brand: Weidmuller
Part Number: 1610200000
Additional Description: WEID-1610200000 BL 3.50/10/180 SN BK BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 3.50 MM, NUMBER OF POLES: 10, CLAMPING YOKE CONNECTION
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
1610200000 Item Features
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
1610200000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #1724274Part Number #1610200000UNSPSC31163101UPC04008190126940
