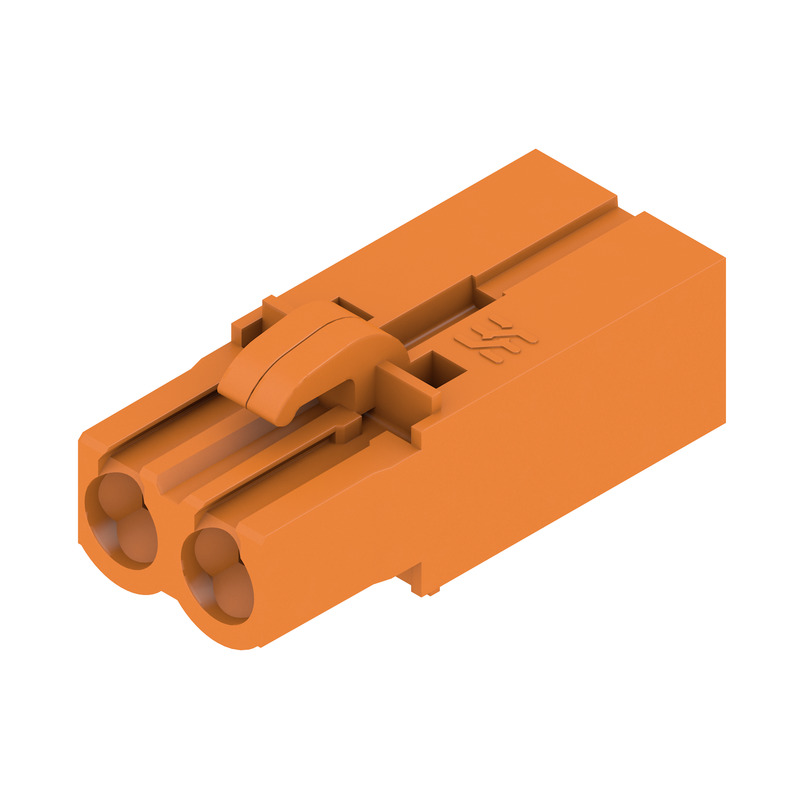

Weidmuller 1610490000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1610490000
SKU # 2120102
1610490000
Weidmuller 1610490000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1610490000
SKU # 2120102
$35.00 / 100Each
Typical price:$40.30 / Each
Weidmuller 1610490000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1610490000 |
| SKU #: | 2120102 |
| Connector Type: | Female Plug |
| Dimensions: | 10.1 mm H x 10.16 mm W x 24.5 mm D |
| Number of Positions: | 2 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Crimp |
| Type: | Wire Connection |
| Wire Size: | 26 to 14 AWG |
| Contact material: | Copper alloy |
| Country of origin: | RO |
| Housing material: | PBT GF |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190057114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.00 / 100Each
Typical price:$40.30 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 5.08 Series, 2 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, 26 to 14 AWG Wire, 300/400 V, Female Plug Connector, Crimp Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT GF Housing Material, -50 to 100 deg C, Orange, 10.1 mm H x 10.16 mm W x 24.5 mm D Dimensions
1610490000 Item Features
- Female plugs with crimp wire connection system
- The female plugs provide space for labeling and can be coded
- 400 V IEC, 300 V UL
1610490000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 12400-374|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2120102Part Number #1610490000UNSPSC31163101UPC04008190057114
Image provided may only be a representation of final product and may include optional equipment
