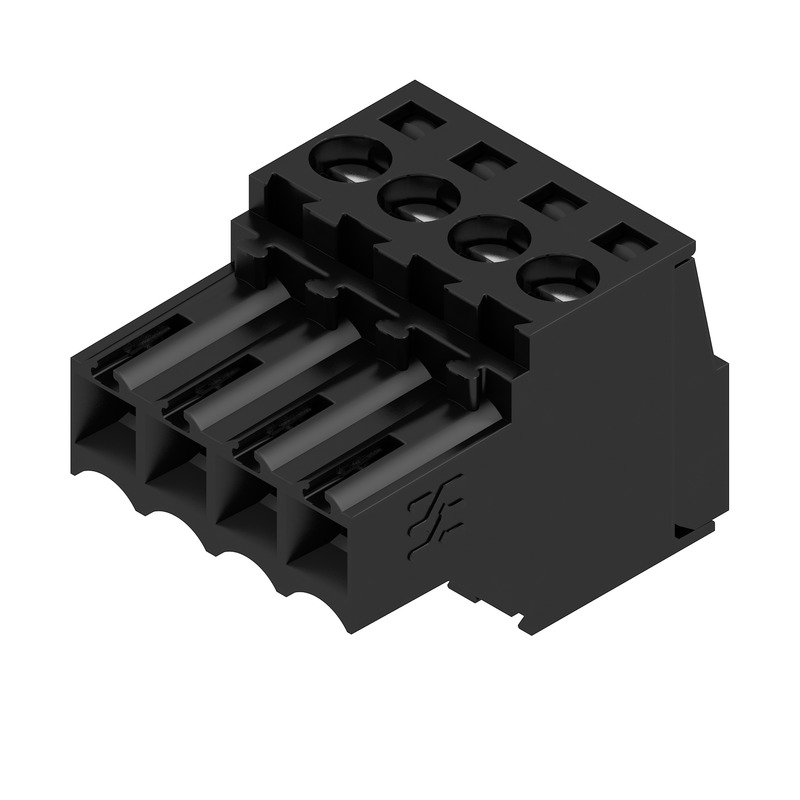

Weidmuller 1615690000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1615690000
SKU # 930382
1615690000
Weidmuller 1615690000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1615690000
SKU # 930382
$405.24 / 132Each
Typical price:$466.75 / Each
Weidmuller 1615690000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1615690000 |
| SKU #: | 930382 |
| Connector Type: | Female Plug |
| Dimensions: | 13 mm H x 14 mm W x 18.5 mm D |
| Number of Positions: | 4 |
| Series: | BL/SL 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Clamping Yoke |
| Type: | Wire Connection |
| Wire Size: | 28 to 14 AWG |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190059033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$405.24 / 132Each
Typical price:$466.75 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 3.50 Series, 4 Positions, 1 Row, 3.5 mm Pitch/Row Spacing, 28 to 14 AWG Wire, 300/320 V, Female Plug Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Black, 13 mm H x 14 mm W x 18.5 mm D Dimensions
1615690000 Item Features
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
1615690000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #930382Part Number #1615690000UNSPSC31163101UPC04008190059033
Image provided may only be a representation of final product and may include optional equipment
