1615700000
Weidmuller 1615700000 Quick Disconnects
Part Number # 1615700000
SKU # 2366560
$405.24 / 66Each
Typical price:$466.75 / Each
Weidmuller 1615700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1615700000 |
| SKU #: | 2366560 |
| Connector Type: | Female Plug |
| Dimensions: | 13 mm H x 28 mm W x 18.5 mm D |
| Series: | BL/SL 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Clamping Yoke |
| Type: | Wire Connection |
| Wire Size: | 28 to 14 AWG |
| Contact material: | Copper alloy |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04008190059910 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$405.24 / 66Each
Typical price:$466.75 / Each
Quantity:
Weidmuller 1615700000 Quick Disconnects
Brand: Weidmuller
Part Number: 1615700000
Additional Description: WEID-1615700000 BL 3.50/08/180 SN BK BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 3.50 MM, NUMBER OF POLES: 8, CLAMPING YOKE CONNECTION
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
1615700000 Item Features
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
1615700000 Standards
RoHS Compliant|IEC 60664-1, 61984|CSA No. 154685-1318353|UL 1059|UL No. E60693 Recognized|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2366560Part Number #1615700000UNSPSC31163101UPC04008190059910

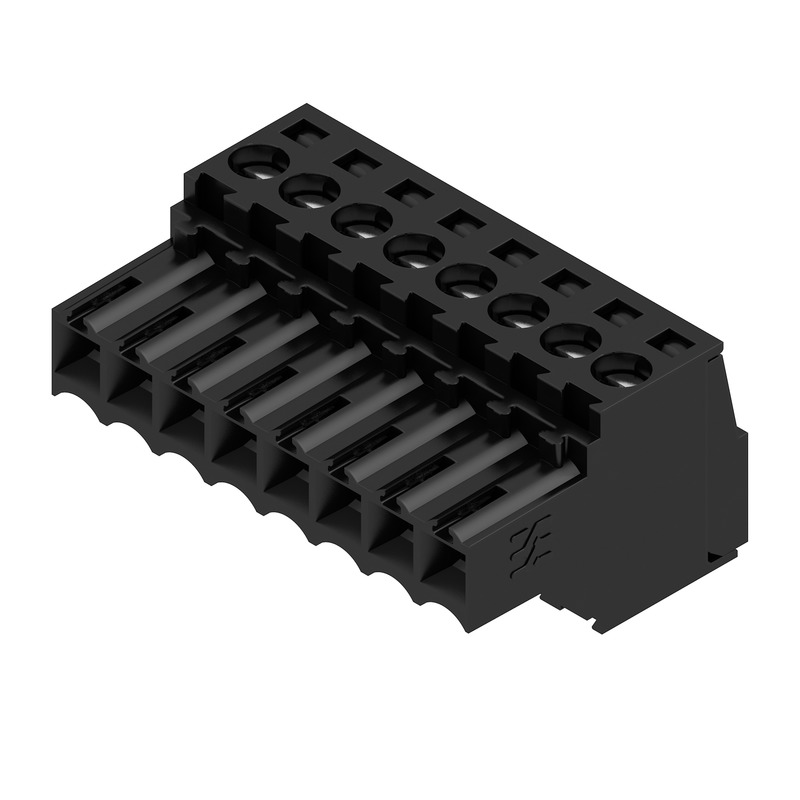

Image provided may only be a representation of final product and may include optional equipment
