1616470000

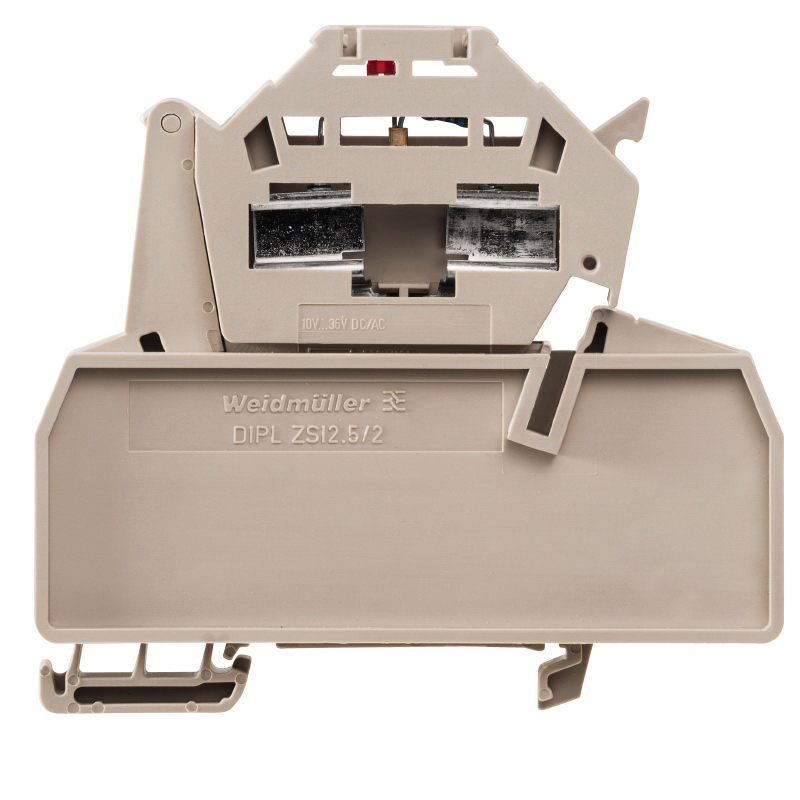

Weidmuller 1616470000 Terminal Block
Part Number # 1616470000
SKU # 2317095
Weidmuller 1616470000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1616470000 |
| SKU #: | 2317095 |
| Dimensions: | 3.13 in H x 0.469 in W x 2.874 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190196677 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1616470000 Terminal Block
Brand: Weidmuller
Part Number: 1616470000
Additional Description: WEID-1616470000 ZSI 2.5/2/LD 28AC FUSE TERMINAL, TENSION-CLAMP CONNECTION, FUSE CARTRIDGE, WITH LED, FOR PLUG-IN CROSS-CONNECTOR, IN CLOSED STATE, TENSION-CLAMP CONNECTION, 2.5 MM, 28 V, 12 A, G-SI. 6.3 X 32, DARK BEIGE
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
1616470000 Item Features
- TS 35 mounting rail
- Fuse cartridge, with LED, for plug-in cross-connector, one end without connector
- 1 potential, 1 level
- 2 clamping points per level
- 0.13 to 4 sq-mm clamping range/rated connection
- Top connection direction
- 2 connections
- 10 to 36 V operating for display
- AC/DC voltage indicator
- G-Si. 6.3 x 32 cartridge fuse
- 6kV rated impulse withstand voltage
- Red LED display
1616470000 Standards
CE Listed|CSA Certified|DNV|EAC Rated|RoHS Compliant|IEC 60947-7-3|UL E60693|UL 94 V-0 Flammability RatingSKU #2317095Part Number #1616470000UNSPSC39121410UPC04008190196677
Image provided may only be a representation of final product and may include optional equipment
