Brand: Weidmuller

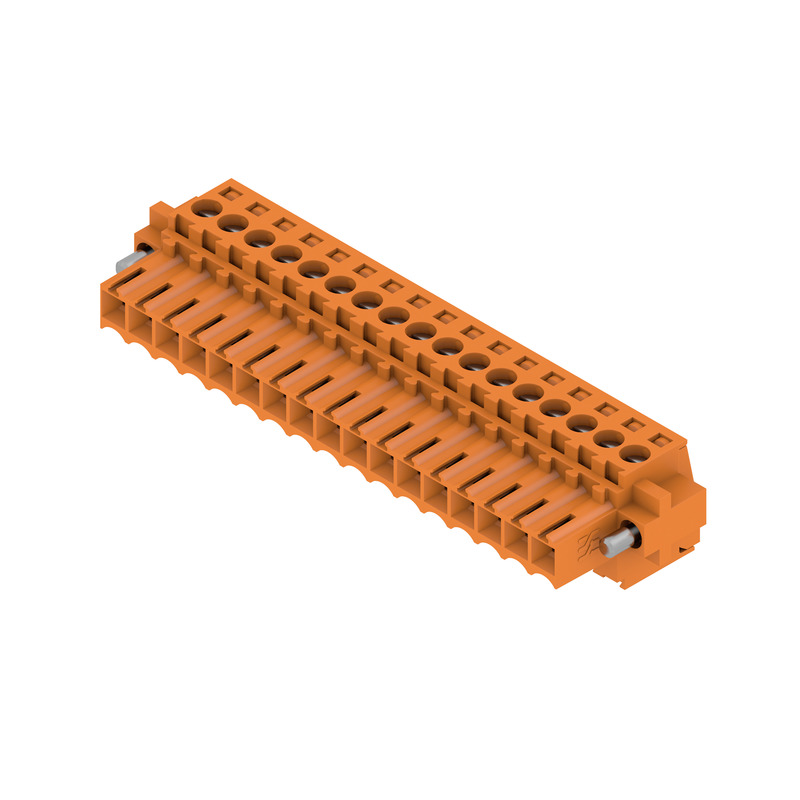

Weidmuller 1620760000 Telecommunication Connector
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1620760000 Telecommunication Connector
Brand: Weidmuller
Weidmuller 1620760000 Telecommunication Connector
Part #:1620760000
SKU #: 2379706
$268.56/24EA
Key Features
Part #:1620760000
SKU #: 2379706
Brand: Weidmuller
Connector Type: Female Plug
Dimensions: 13 mm H x 66.5 mm W x 18.5 mm D
Number of Positions: 17
Series: BL/SL 3.50 Series
Temperature Rating (Degrees F): -50 to 100 deg C
$268.56/24EA
- Female connectors with clamping yoke screw system for connecting conductors at 3.5 mm pitch
- They provide space for labeling and can be coded
- 320 V IEC, 300 V UL
Specifications
Brand: Weidmuller
Connector Type: Female Plug
Dimensions: 13 mm H x 66.5 mm W x 18.5 mm D
Number of Positions: 17
Series: BL/SL 3.50 Series
Temperature Rating (Degrees F): -50 to 100 deg C
Termination Type: Clamping Yoke
Type: Wire Connection
Voltage Rating: 300/320 V
Wire Size: 28 to 14 AWG
Color: Orange
Contact material: Copper alloy
Housing material: PBT
Insulation resistance: >=10^8 Ohm
UNSPSC: 31163101
UPC: 04008190161651
Weidmuller 1620760000 Telecommunication Connector
Additional Description: WEID-1620760000 BL 3.50/17/180F SN OR BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 3.50 MM, NUMBER OF POLES: 17, CLAMPING YOKE CONNECTION
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
