Brand: Weidmuller

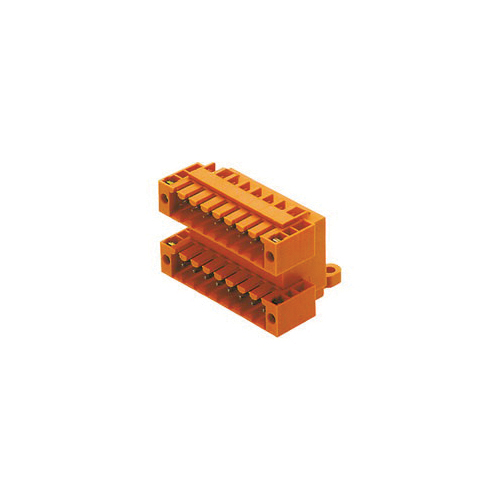

Weidmuller 1633920000 Omnimate Signal Pcb Plug-In Connector
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1633920000 Omnimate Signal Pcb Plug-In Connector
Brand: Weidmuller
Weidmuller 1633920000 Omnimate Signal Pcb Plug-In Connector
Part #:1633920000
SKU #: 2379242
$104.20/10EA
Key Features
Part #:1633920000
SKU #: 2379242
Brand: Weidmuller
Connector Type: Male Header
Dimensions: 26.5 mm H x 52.5 mm W x 24.7 mm D
Number of Positions: 26
Series: BL/SL 3.50 Series
Temperature Rating (Degrees F): -50 to 100 deg C
$104.20/10EA
- Two-tier pin header for wave soldering in 3.5 mm pitch
- The male connectors provide space for labeling and can be coded
- 200 V IEC, 300 V UL
Specifications
Brand: Weidmuller
Connector Type: Male Header
Dimensions: 26.5 mm H x 52.5 mm W x 24.7 mm D
Number of Positions: 26
Series: BL/SL 3.50 Series
Temperature Rating (Degrees F): -50 to 100 deg C
Termination Type: THT Solder
Type: Board Connection
Voltage Rating: 200/300 V
Color: Orange
Contact material: CuSn
Housing material: PBT
Mounting type: PCB
UNSPSC: 31163101
UPC: 04008190258375
Weidmuller 1633920000 Omnimate Signal Pcb Plug-In Connector
Additional Description: WEID-1633920000 SLD 3.50/26/90F 3.2SN OR BX PCB PLUG-IN CONNECTOR (BOARD CONNECTION), 3.50 MM, NUMBER OF POLES: 26, OUTGOING ELBOW: 90
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
