Brand: Weidmuller
Weidmuller 1636170000 Terminal Blocks
Part Number # 1636170000
SKU # 2347851
Brand: Weidmuller
1636170000
Weidmuller 1636170000 Terminal Blocks
Part Number # 1636170000
SKU # 2347851
$113.60 / 20Each
Typical price:$130.66 / Each
Weidmuller 1636170000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1636170000 |
| SKU #: | 2347851 |
| Amperage Rating: | 65 A |
| Dimensions: | 33 mm H x 20.32 mm W x 18.3 mm D |
| Number of Poles: | 2 |
| Series: | LU Series |
| Spacing: | 10.16 mm |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 1.5 N-m |
| Wire Size: | 26 to 6 AWG |
| Connection type: | Clamping Yoke |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190267094 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$113.60 / 20Each
Typical price:$130.66 / Each
Quantity:
- Weidmuller OMNIMATE Power PCB Terminal Block, Series: LU Series, 300 V, 65 A, 2 Pole, 26 to 6 AWG Wire, 12 mm Wire Strip Length, M4 Terminal, 10.16 mm Spacing, 1.2 to 1.5 N-m Torque, Through-Hole Mounting, Clamping Yoke Connection, -50 to 120 deg C, Wemid, Pebble Gray, 33 mm H x 20.32 mm W x 18.3 mm D Dimensions
1636170000 Item Features
- This PCB terminal provides connections for 76 A and 16 sq-mm conductor cross-section with proven clamping yoke connection at 10.16 mm pitch, conductor outlet direction in 90 deg design
1636170000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-1198743|UL 1059|UL File No. E60693|IEC 60664-1, 61984|EAC Certified|UL File No. E60693|UL 1059|CSA Certified|IEC 60664-1|IEC 61984SKU #2347851Part Number #1636170000UNSPSC39121410UPC04008190267094

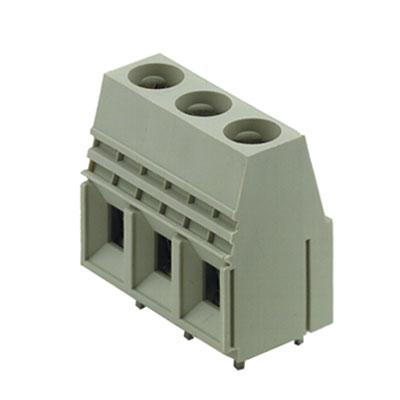

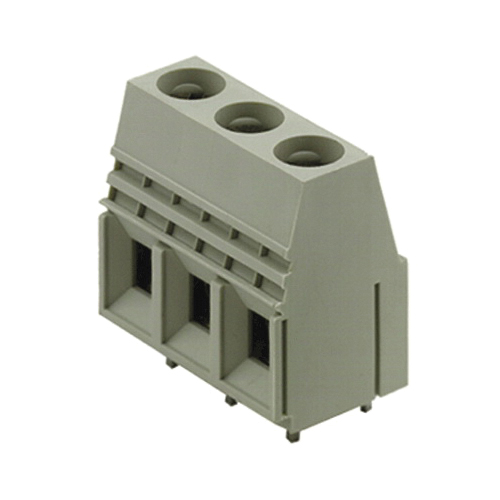

Image provided may only be a representation of final product and may include optional equipment
