Weidmuller 1651630000 Bulkhead Pass Through Connector
Part Number # 1651630000
SKU # 2392214
1651630000
Weidmuller 1651630000 Bulkhead Pass Through Connector
Part Number # 1651630000
SKU # 2392214
$106.47 / 100Each
Typical price:$122.60 / Each
Weidmuller 1651630000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1651630000 |
| SKU #: | 2392214 |
| Dimensions: | 3.5 mm Dia x 25 mm L |
| Finish: | Gold Plated |
| Series: | HD Series |
| Specifications: | 7.5 mm Stripping Length, >= 500 Plugging Cycles, 1.6 mm Contact Dia, 4 mOhm Volume Resistance |
| Suitable For Use With: | RockStar HD, HDD, HQ and MixMate Series Connector Insert |
| Type: | Male Pin Turned |
| UNSPSC: | 32151901 |
| UPC: | 04008190400309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$106.47 / 100Each
Typical price:$122.60 / Each
Quantity:

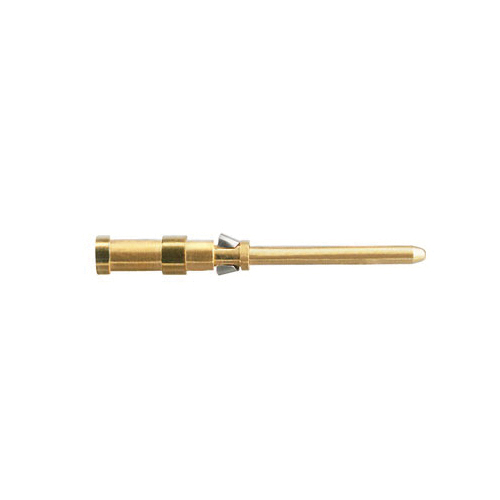

- Weidmuller Connector Contact, Male Pin Turned, Series: HD Series, 0.5 sq-mm Wire/Contact, Crimp Terminal, For Use With: RockStar HD, HDD, HQ and MixMate Series Connector Insert, Specifications: 7.5 mm Stripping Length, >= 500 Plugging Cycles, 1.6 mm Contact Dia, 4 mOhm Volume Resistance, Copper Alloy, Gold Plated, 3.5 mm Dia x 25 mm L Dimensions
1651630000 Item Features
- Crimps provide a electrical and mechanical connection between wire and contact that is both secure and reliable
- Optimal crimp connection is gas tight and corrosion-resistant
1651630000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|EAC Certified|UL File No. E92202|CSA Certified|cULus RecognizedSKU #2392214Part Number #1651630000UNSPSC32151901UPC04008190400309
Image provided may only be a representation of final product and may include optional equipment
