1654580000

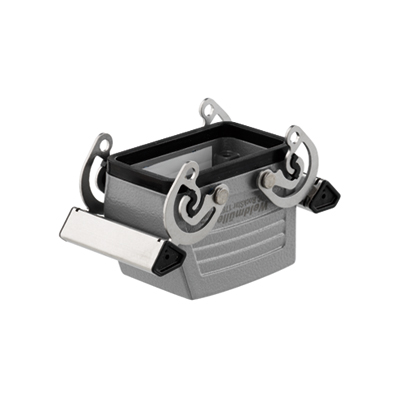

Weidmuller 1654580000 Electrical Plug
Part Number # 1654580000
SKU # 2205070
$20.00 / Each
Typical price:$23.01 / Each
Weidmuller 1654580000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1654580000 |
| SKU #: | 2205070 |
| Dimensions: | 55 mm H x 55 mm W x 115.7 mm D |
| Specifications: | SZ 4, IP65 Degree of Protection, 1.2 N-m Tightening Torque |
| Type: | Industry Plug-In Standard |
| UNSPSC: | 32151901 |
| UPC: | 04008190407407 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.00 / Each
Typical price:$23.01 / Each
Quantity:
- Weidmuller Closed Connector Base, Industry Plug-In Standard, Bottom Entry Position, PG16 Entry, Panel Mounting, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, Specifications: SZ 4, IP65 Degree of Protection, 1.2 N-m Tightening Torque, Die Cast Aluminum, Gray, Powder Coated, 55 mm H x 55 mm W x 115.7 mm D Dimensions
1654580000 Application
General Mechanical Engineering, Materials Handling and Factory Construction, Packaging Machines, Transport and Traffic Engineering, Energy Technology, Lighting and Stage Equipment and Process Engineering Applications1654580000 Item Features
- Side locking clamp on lower side
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1654580000 Standards
REACH SVHC Lead 7439-92-1|REACH SVHC DIBP 84-69-5|UL File No. E92202|CE Certified|cULus RecognizedSKU #2205070Part Number #1654580000UNSPSC32151901UPC04008190407407
Image provided may only be a representation of final product and may include optional equipment
