1664690000

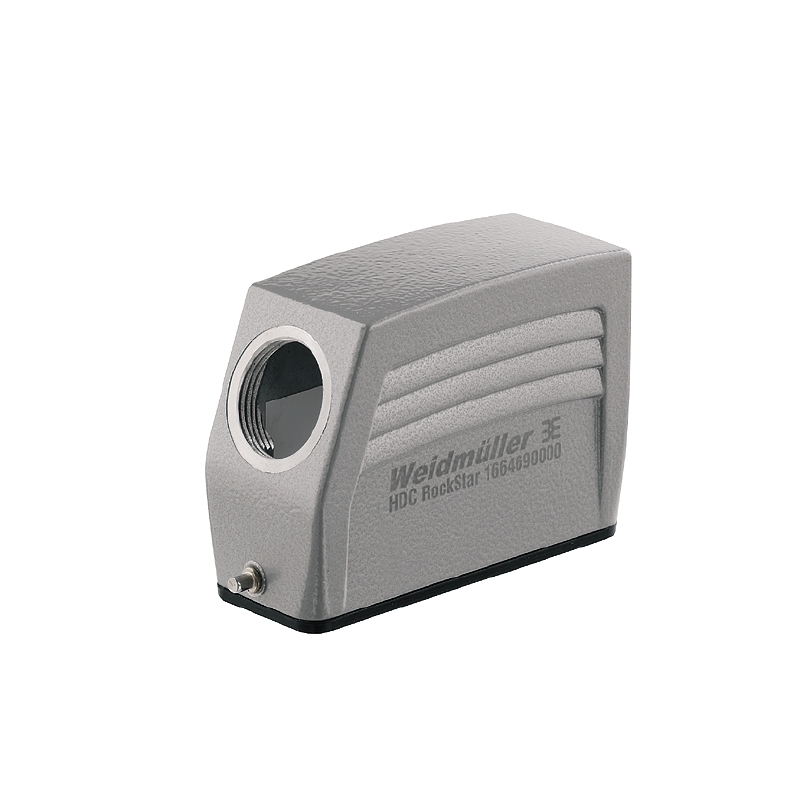

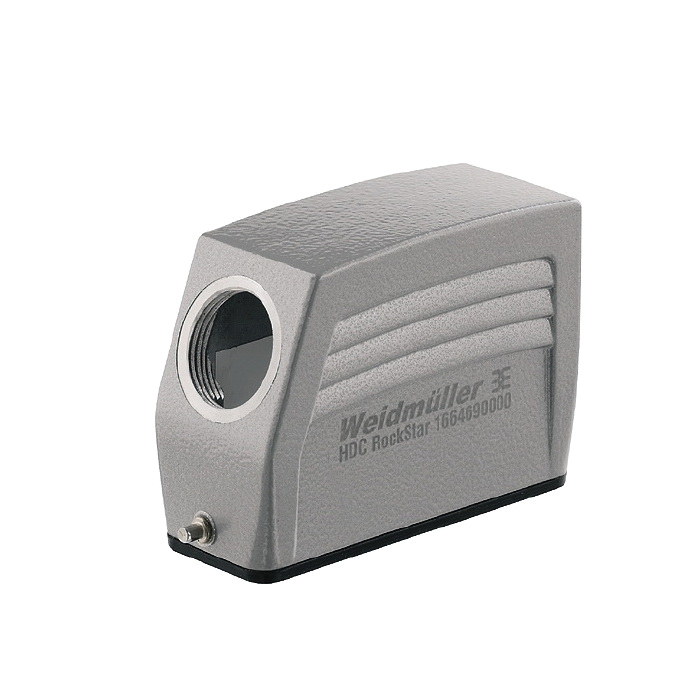

Weidmuller 1664690000 Hood
Part Number # 1664690000
SKU # 935081
Weidmuller 1664690000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1664690000 |
| SKU #: | 935081 |
| Dimensions: | 58 mm H x 32.5 mm W x 89 mm D |
| Specifications: | IP65 Degree of Protection, End Locking Clamp on Lower Side, 0.5 N-m Tightening Torque, SZ 5 |
| UNSPSC: | 32151901 |
| UPC: | 04008190421397 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1664690000 Hood
Brand: Weidmuller
Part Number: 1664690000
Weidmuller Hood, Standard, Side Entry Position, PG16 Entry, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, End Locking Clamp on Lower Side, 0.5 N-m Tightening Torque, SZ 5, Die Cast Aluminum, Gray, Powder Coated, 58 mm H x 32.5 mm W x 89 mm D Dimensions
Additional Description: WEID-1664690000 HDC 16A TSLU 1PG16G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM SIDE, PLUG HOUSING, END-LOCKING CLAMP, LOWER SIDE, SIZE: 5, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1664690000 Application
Industrial Applications1664690000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1664690000 Standards
CE Certified|cULus Recognized|REACH SVHC Lead 7439-92-1|DIBP 84-69-5SKU #935081Part Number #1664690000UNSPSC32151901UPC04008190421397
Image provided may only be a representation of final product and may include optional equipment
