Brand: Weidmuller

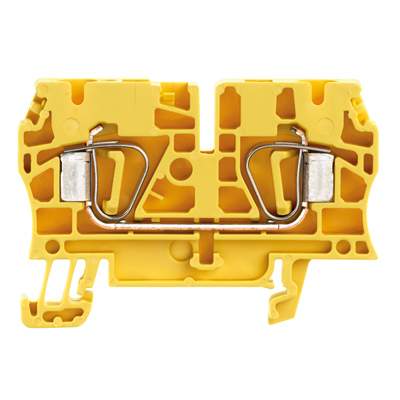

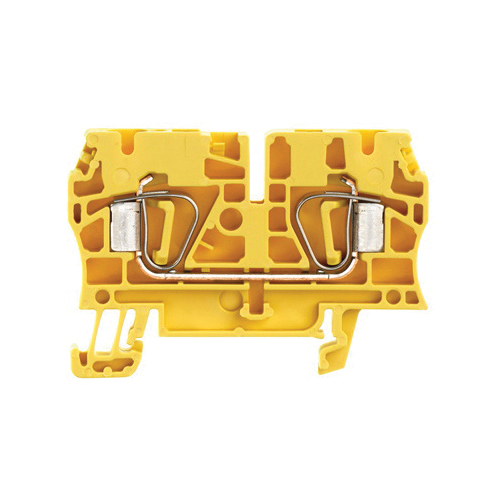

Weidmuller 1683590000 Electrical Terminal
Part Number # 1683590000
SKU # 2297068
Brand: Weidmuller
1683590000
Weidmuller 1683590000 Electrical Terminal
Part Number # 1683590000
SKU # 2297068
$155.00 / 100Each
Typical price:$172.40 / Each
Weidmuller 1683590000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1683590000 |
| SKU #: | 2297068 |
| Amperage Rating: | 32 A |
| Dimensions: | 62 mm H x 6.1 mm W x 43 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Feed-Through |
| Wire Size: | 4 sq-mm |
| Connection type: | Tension Clamp |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190476564 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$155.00 / 100Each
Typical price:$172.40 / Each
Quantity:
- Klippon Terminal Block, Feed-Through, Series: Z Series, 800 V, 32 A, 4 sq-mm Wire, 12 mm Wire Strip Length, Snap-Fit Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Yellow, 62 mm H x 6.1 mm W x 43 mm D Dimensions
1683590000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1683590000 Standards
RoHS Compliant|UL/cULus File No. E60693|CSA File No. 200039-1152892|EAC Certified|cULus Ex Recognized|ATEx Certified|DNV-GL Approved|IEC Ex Certified|INMETRO Certified|Ex ATEX KEMA Certified|Lloyds Register|RMRS Certified|UL 94 V-0 Flammability Rating|ATEX File No. KEMA97ATEX2521U|IECEX File No. IECEXULD05.0009U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2297068Part Number #1683590000UNSPSC39121410UPC04008190476564
Image provided may only be a representation of final product and may include optional equipment
