1698200000

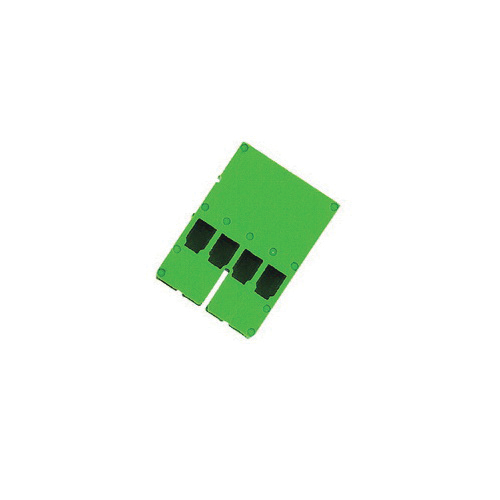

Weidmuller 1698200000 Electrical Terminal
Part Number # 1698200000
SKU # 2287309
$55.00 / 50Each
Typical price:$61.05 / Each
Weidmuller 1698200000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1698200000 |
| SKU #: | 2287309 |
| Cable Size: | 26 to 14 AWG |
| Connector Type: | Crimp |
| Dimensions: | 0.661 in H x 0.197 in W x 0.906 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190886431 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$55.00 / 50Each
Typical price:$61.05 / Each
Quantity:
- Weidmuller Connector, Series: Z Series, Crimp Connector, 26 to 14 AWG Cable, Wemid, Green, 0.661 in H x 0.197 in W x 0.906 in D
1698200000 Item Features
- Four clamping points
- Plugged direct mounting
- 0.6 x 3.5 mm blade
- 0.5 to 1 sq-mm clamping
- Inclined/angled connection
- 4 mm L stripping
- 4 A current, rated impulse withstand voltage is 1.5 kV, pollution severity is 3
- 0.16 in wire strip length
- 63 VAC voltage
- 4 A Amperage
- Plug-In terminal
- -50 to 120 deg C temperature
1698200000 Standards
UL 94 V0|IEC 60947-7-1 (-7-2)|IEC 61984|EAC Certified|RoHS CompliantSKU #2287309Part Number #1698200000UNSPSC39121410UPC04008190886431
