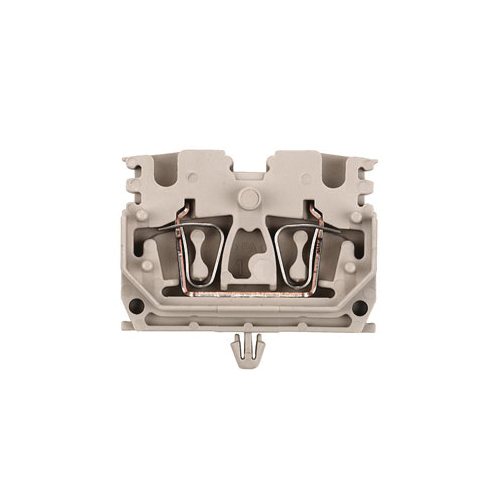

Weidmuller 1712810000 Klippon Pe Terminal Block
Part Number # 1712810000
SKU # 2213703
Weidmuller 1712810000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1712810000 |
| SKU #: | 2213703 |
| Amperage Rating: | 24 A |
| Dimensions: | 33.5 mm H x 5.1 mm W x 31 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Mini-Modular |
| Wire Size: | 26 to 12 AWG |
| Color: | Green/Yellow |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190376826 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1712810000 Klippon Pe Terminal Block
Brand: Weidmuller
Part Number: 1712810000
Klippon PE Terminal Block, 1-Tier Mini-Modular, Series: Z Series, 800 V, 24 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, Snap-On Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Green/Yellow, 33.5 mm H x 5.1 mm W x 31 mm D Dimensions
Additional Description: WEID-1712810000 (D) ZPEB 2.5-2 PE TERMINAL, TENSION-CLAMP CONNECTION, 2.5 MM, 800 V, 24 A, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1712810000 Includes
01712810000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1712810000 Standards
RoHS Compliant|CE Certified|CSA Certified|cULus Recognized|ATEX Certified|EAC Certified|IEC EX Certified|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2213703Part Number #1712810000UNSPSC39121410UPC04008190376826
