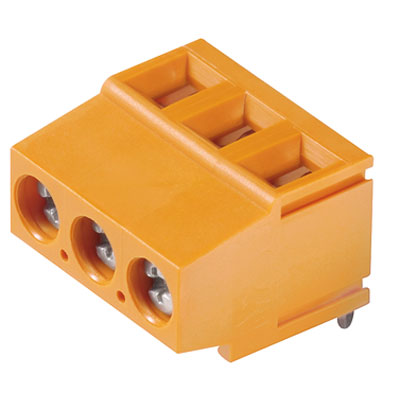

Weidmuller 1716050000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1716050000
SKU # 2307346
1716050000
Weidmuller 1716050000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1716050000
SKU # 2307346
$355.00 / 500Each
Typical price:$410.50 / Each
Weidmuller 1716050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1716050000 |
| SKU #: | 2307346 |
| Dimensions: | 13.5 mm H x 15.79 mm W x 14.2 mm D, 19 mm H x 10.71 mm W x 13.9 mm D |
| UNSPSC: | 39121443 |
| UPC: | 04008190365349 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$355.00 / 500Each
Typical price:$410.50 / Each
Quantity:
Weidmuller 1716050000 Printed Circuit Board Pcb Press Fit Header Connector
Brand: Weidmuller
Part Number: 1716050000
Additional Description: WEID-1716050000 LM 5.08/03/180 3.5SN BK BX PCB TERMINAL, 5.08 MM, NUMBER OF POLES: 3, CONDUCTOR OUTLET DIRECTION: 180 , CLAMPING YOKE CONNECTION
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1716050000 Item Features
- PCB terminal with proven clamping yoke connection at 5 mm and 5.08 mm pitch
- Conductor outlet direction 90 deg, 135 deg and 180 deg
- Suitable for conductor cross-sections up to 2.5 sq-mm
- 630 V IEC, 300 V UL
- 17.5 A IEC, 15 A UL
- https://youtu.be/55aJK5wcyIE
1716050000 Standards
RoHS Compliant|CSA 200039-1815154|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #2307346Part Number #1716050000UNSPSC39121443UPC04008190365349

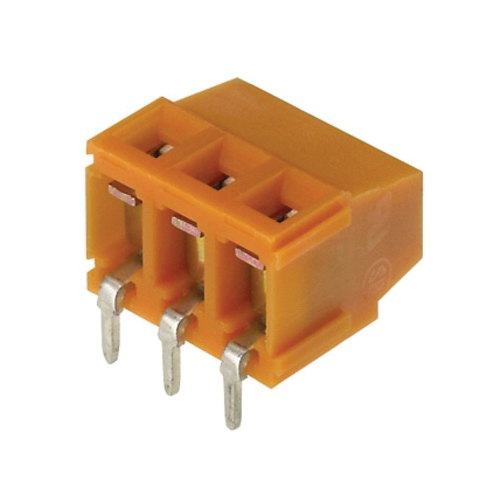

Image provided may only be a representation of final product and may include optional equipment
