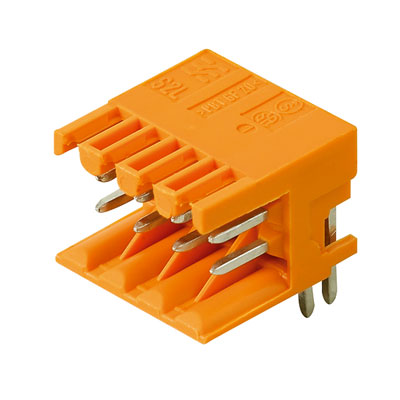

Weidmuller 1728210000 Electrical Receptacle
Part Number # 1728210000
SKU # 2339705
$255.96 / 54Each
Typical price:$294.68 / Each
Weidmuller 1728210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1728210000 |
| SKU #: | 2339705 |
| Connector Type: | Male Header |
| Dimensions: | 14 mm H x 35 mm W x 14.2 mm D |
| Number of Positions: | 20 |
| Series: | B2L/S2L 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection Open Side |
| Contact material: | Copper alloy |
| Country of origin: | RO |
| Housing material: | PBT |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248039708 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$255.96 / 54Each
Typical price:$294.68 / Each
Quantity:

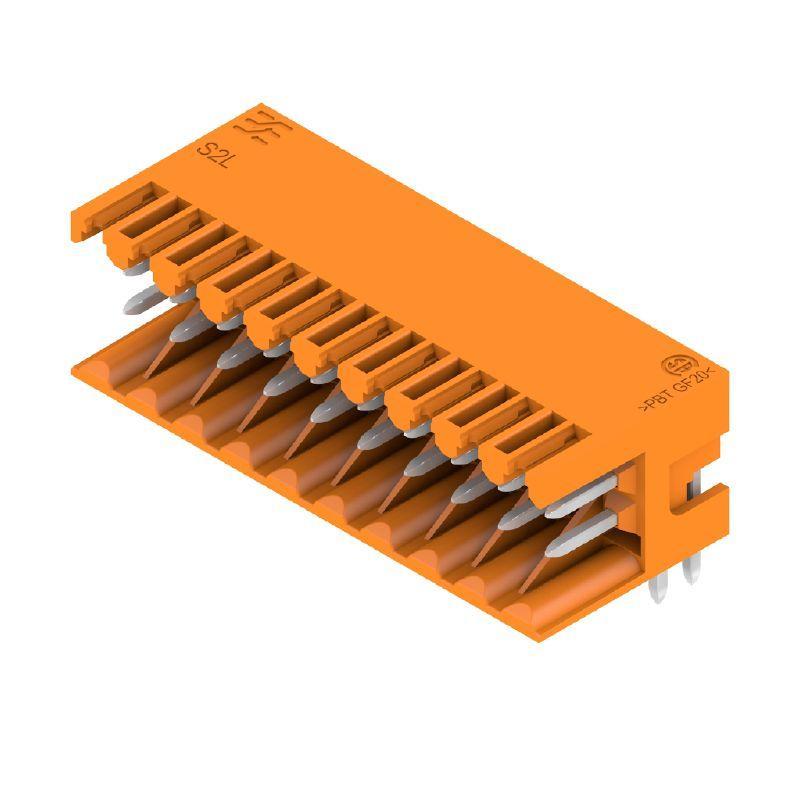

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Open Side, Series: B2L/S2L 3.50 Series, 20 Positions, 2 Rows, 3.5 mm Pitch/Row Spacing, PCB Mounting, 150/250 V, Male Header Connector, THT Solder Termination, Copper Alloy Contact, PBT Housing Material, -50 to 100 deg C, Orange, 14 mm H x 35 mm W x 14.2 mm D Dimensions
1728210000 Item Features
- Angled, 2-tier pin header
- Pin headers with 3.5 mm pins are designed for wave soldering and are packaged in a box
- They can be screwed on to the PCB
- The pin headers provide space for labelling and can be coded
- 250 V IEC, 150 V UL
- https://youtu.be/Ifq_mdNjF4g
1728210000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1488444|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2339705Part Number #1728210000UNSPSC31163101UPC04032248039708
Image provided may only be a representation of final product and may include optional equipment
