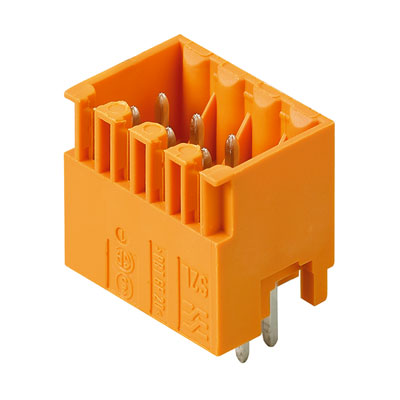

Weidmuller 1728820000 Electrical Receptacle
Part Number # 1728820000
SKU # 2181906
$246.48 / 78Each
Typical price:$283.76 / Each
Weidmuller 1728820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1728820000 |
| SKU #: | 2181906 |
| Connector Type: | Male Header |
| Dimensions: | 17.7 mm H x 25.9 mm W x 10.5 mm D |
| Number of Positions: | 14 |
| Series: | B2L/S2L 3.50 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection Closed Side |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Housing material: | PBT |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248040278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$246.48 / 78Each
Typical price:$283.76 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Closed Side, Series: B2L/S2L 3.50 Series, 14 Positions, 2 Rows, 3.5 mm Pitch/Row Spacing, PCB Mounting, 150/250 V, Male Header Connector, THT Solder Termination, Copper Alloy Contact, PBT Housing Material, -50 to 100 deg C, Orange, 17.7 mm H x 25.9 mm W x 10.5 mm D Dimensions
1728820000 Item Features
- Straight, double-row pin header
- The male headers with a pin length of 3.5 mm are designed for wave soldering and are packed in a box
- They can be screwed on to the PCB
- The male headers provide space for labelling and can be coded
- 250 V IEC, 150 V UL
- https://youtu.be/Ifq_mdNjF4g
1728820000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1488444|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2181906Part Number #1728820000UNSPSC31163101UPC04032248040278

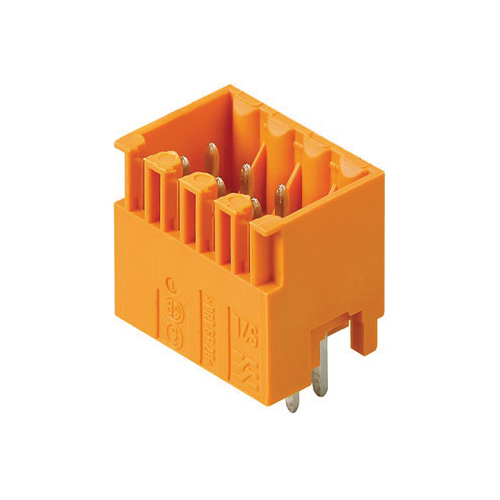

Image provided may only be a representation of final product and may include optional equipment
