Weidmuller 1730940000 Electrical Terminal
Part Number # 1730940000
SKU # 1399256
$171.00 / 100Each
Typical price:$190.30 / Each
Weidmuller 1730940000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1730940000 |
| SKU #: | 1399256 |
| Dimensions: | 1.732 in H x 0.201 in W x 1.681 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190388775 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$171.00 / 100Each
Typical price:$190.30 / Each
Quantity:

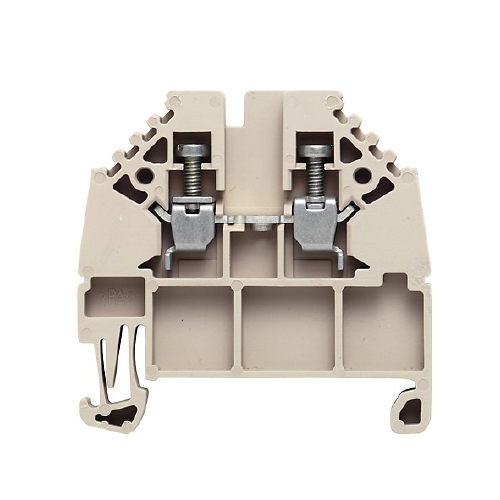

- Klippon Feed-Through Terminal Block, 1-Tier, Series: W Series, 800 V AC, 24 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, 2.5 sq-mm Terminal, Snap-Fit Mount, Screw, -50 to 130 deg C, Wemid, Dark Beige, 1.732 in H x 0.201 in W x 1.681 in D
1730940000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Right open sides
- 0.6 x 3.5 mm blade
- 1.33 mOhm volume-resistance
- For screwable cross-connection
- 8 kV rated impulse withstand voltage
- WDU 2.5N/600UL type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1730940000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #1399256Part Number #1730940000UNSPSC39121410UPC04008190388775
Image provided may only be a representation of final product and may include optional equipment
