Brand: Weidmuller

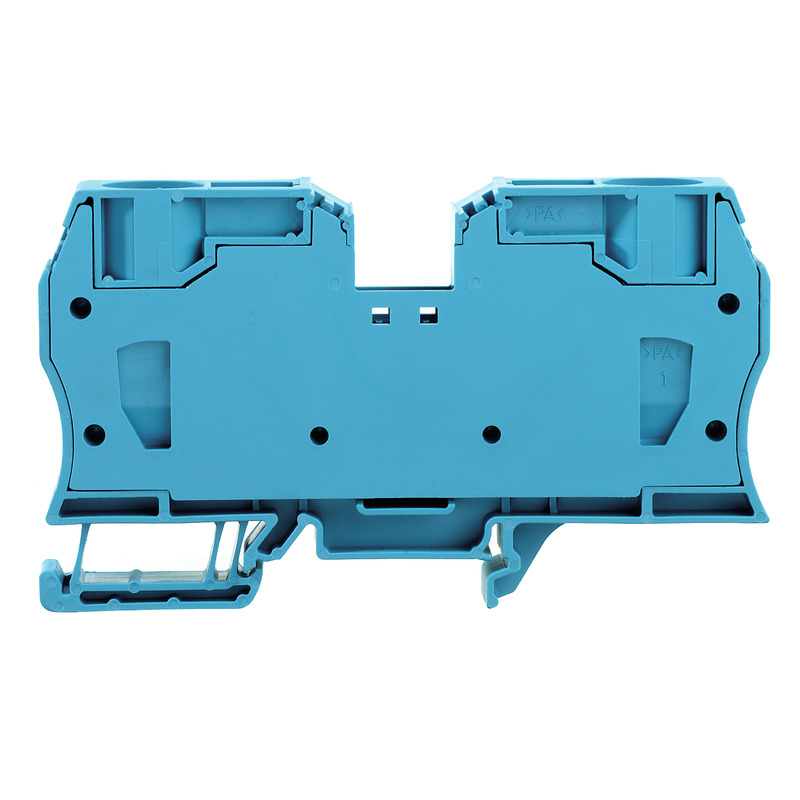

Weidmuller 1739630000 Klippon Terminal Block
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1739630000 Klippon Terminal Block
Brand: Weidmuller
Weidmuller 1739630000 Klippon Terminal Block
Part #:1739630000
SKU #: 2410664
$176.00/10EA
Key Features
Part #:1739630000
SKU #: 2410664
Brand: Weidmuller
Amperage Rating: 109/120/125 A
Dimensions: 100.5 mm H x 16 mm W x 58.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: 1-Tier Feed-Through
$176.00/10EA
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 125 A IEC, 109 A EN 60079-7, 120 A UL and CSA
Specifications
Brand: Weidmuller
Amperage Rating: 109/120/125 A
Dimensions: 100.5 mm H x 16 mm W x 58.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: 1-Tier Feed-Through
Voltage Rating: 550/600/800 V
Wire Size: 12 to 2 AWG
Color: Blue
Connection type: Tension Clamp
Material: Wemid
Mounting type: Snap-On/DIN Rail
UNSPSC: 39121410
UPC: 04008190957087
Weidmuller 1739630000 Klippon Terminal Block
Additional Description: WEID-1739630000 ZDU 35 BL FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 35 MM, 800 V, 125 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
