1745210000
Weidmuller 1745210000 Electrical Terminal
Part Number # 1745210000
SKU # 2213890
$22.00 / 20Each
Typical price:$24.54 / Each
Weidmuller 1745210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1745210000 |
| SKU #: | 2213890 |
| Amperage Rating: | 65/66/76 A |
| Dimensions: | 82.5 mm H x 12.1 mm W x 50.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Feed-Through |
| Wire Size: | 14 to 4 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190071448 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.00 / 20Each
Typical price:$24.54 / Each
Quantity:

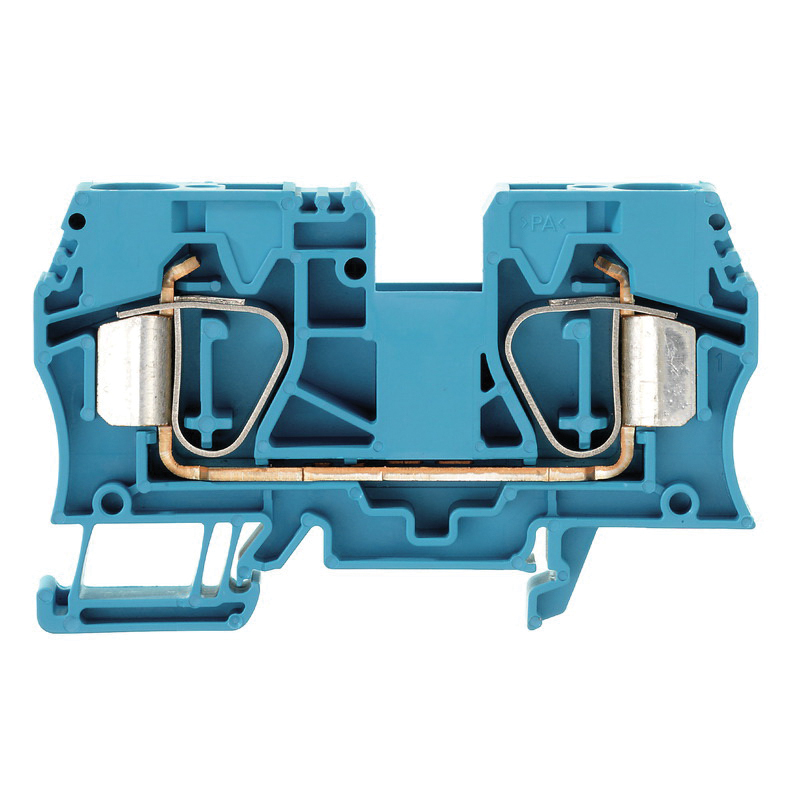

- Klippon Terminal Block, 1-Tier Feed-Through, Series: Z Series, 550/600/1000 V, 65/66/76 A, 14 to 4 AWG Wire, 18 mm Wire Strip Length, DIN Rail Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Blue, 82.5 mm H x 12.1 mm W x 50.5 mm D Dimensions
1745210000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 1000 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 76 A IEC, 66 A EN 60079-7, 65 A UL and CSA
1745210000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1152892|ATEX KEMA99ATEX5514U|IECEX IECEXULD15.0008U|UL 94 V-0 Flammability Rating|CE Certified|cULusEX Listed|EAC Certified|INMETRO Certified|KEMAEUR Certified|Lloyds Register Certified|IEC 60947-7-1SKU #2213890Part Number #1745210000UNSPSC39121410UPC04008190071448
Image provided may only be a representation of final product and may include optional equipment
