Brand: Weidmuller

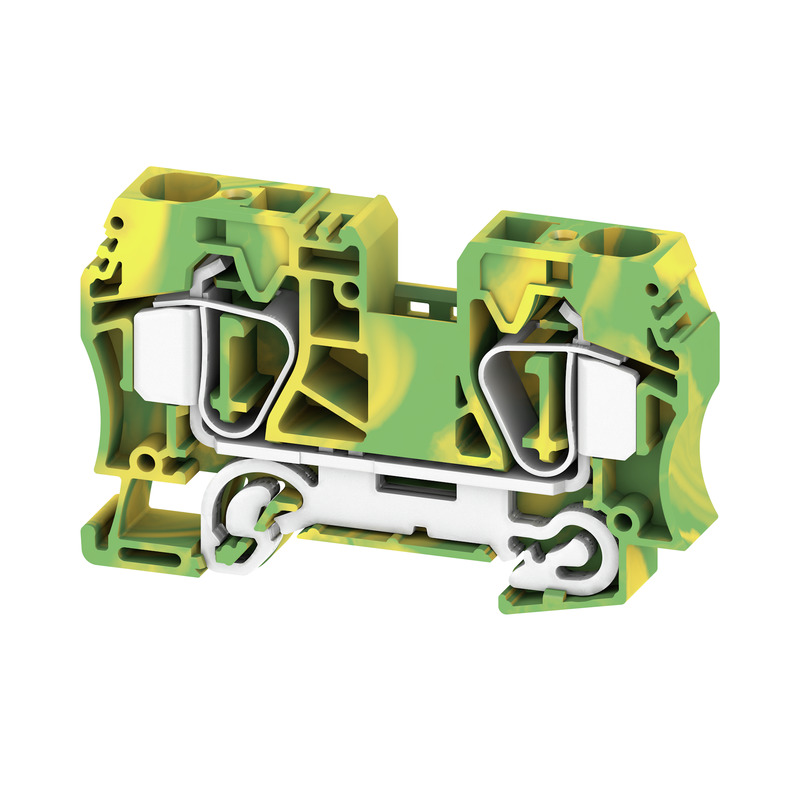

Weidmuller 1745250000 Electrical Terminal
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1745250000 Electrical Terminal
Brand: Weidmuller
Weidmuller 1745250000 Electrical Terminal
Part #:1745250000
SKU #: 932432
$202.50/25EA
Key Features
Part #:1745250000
SKU #: 932432
Brand: Weidmuller
Dimensions: 82.5 mm H x 12.1 mm W x 50.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: Standard
Voltage Rating: 800 V
$202.50/25EA
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
Specifications
Brand: Weidmuller
Dimensions: 82.5 mm H x 12.1 mm W x 50.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: Standard
Voltage Rating: 800 V
Wire Size: 16 sq-mm
Color: Green/Yellow
Connection type: Tension Clamp
Country of origin: RO
Material: Wemid
Mounting type: Snap-On
Manufacturer Name: Weidmuller
UNSPSC: 39121410
UPC: 04008190996789
Weidmuller 1745250000 Electrical Terminal
Additional Description: WEID-1745250000 ZPE 16 PE TERMINAL, TENSION-CLAMP CONNECTION, 16 MM, 800 V, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
Item Features
Item FeaturesRoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-1152892|ATEX File No. KEMA99ATEX5514U|IECEX File No. IECEXULD05.0009U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|cULus Listed|EAC Certified|IEC Ex Certified|INMETRO Certified|KEMA-KEUR Certified
