1745780000

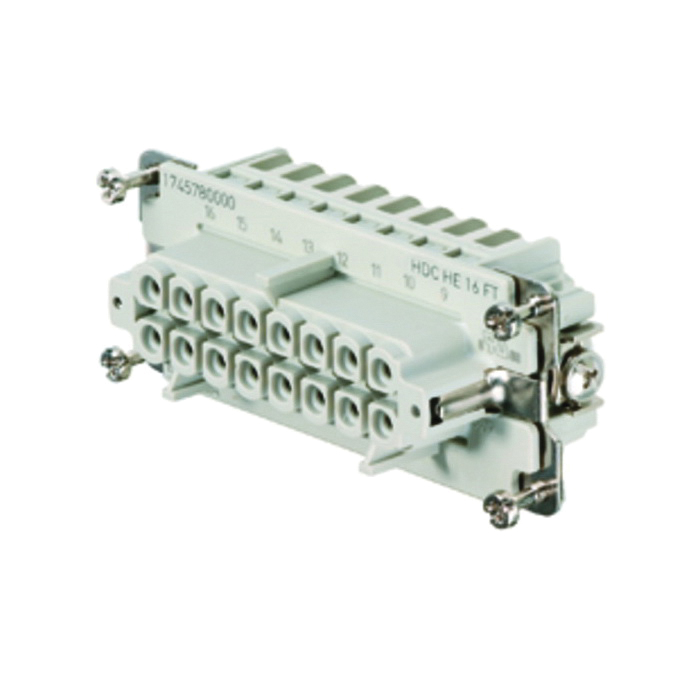

Weidmuller 1745780000 Electrical Plug
Part Number # 1745780000
SKU # 2221883
$21.15 / Each
Typical price:$24.34 / Each
Weidmuller 1745780000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1745780000 |
| SKU #: | 2221883 |
| Dimensions: | 33 mm H x 34 mm W x 84.5 mm D |
| Finish: | Silver Passivated |
| Series: | HDC |
| Specifications: | 500 V, 16 A, SZ 6, 33 mm H of Socket, 84.5 mm Total L Base |
| Suitable For Use With: | Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | 16-Pole |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04008190985509 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.15 / Each
Typical price:$24.34 / Each
Quantity:
- Weidmuller Female Contact Insert, 16-Pole, Series: HDC, 20 to 12 AWG Wire, Tension Clamp Connection, For Use With: Heavy Duty Connector, -40 to 125 deg C, Specifications: 500 V, 16 A, SZ 6, 33 mm H of Socket, 84.5 mm Total L Base, Silver Passivated, 33 mm H x 34 mm W x 84.5 mm D Dimensions
1745780000 Standards
RoHS Compliant|UL File No. E92202|UL 94 V-0 Flammability Rating|cULus Recognized|EAC Certified|REACH CompliantSKU #2221883Part Number #1745780000UNSPSC32151901UPC04008190985509
Image provided may only be a representation of final product and may include optional equipment
