1745790000

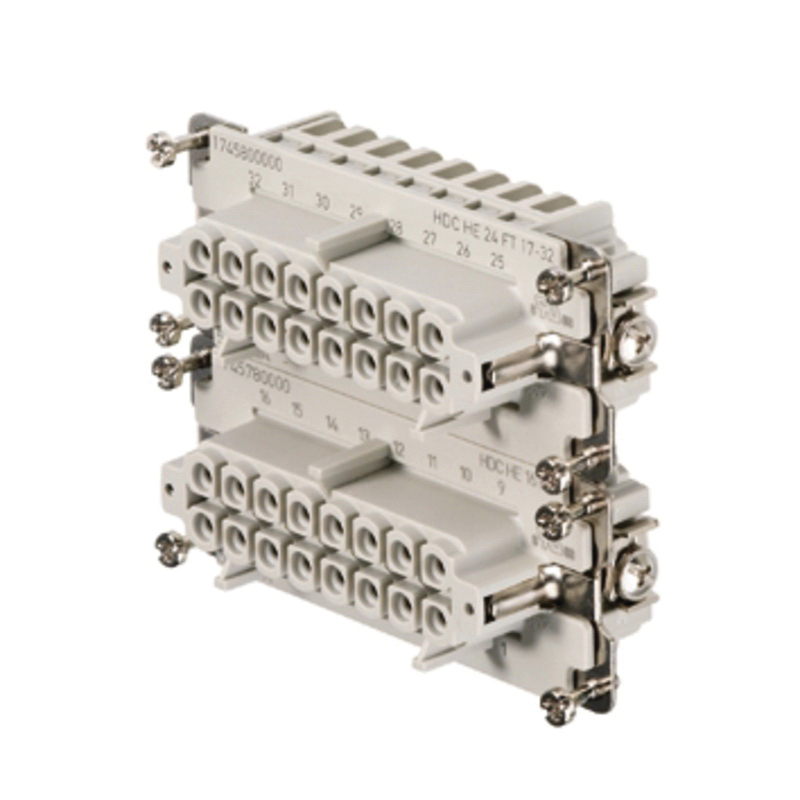

Weidmuller 1745790000 Electrical Plug
Part Number # 1745790000
SKU # 936112
$27.06 / Each
Typical price:$31.15 / Each
Weidmuller 1745790000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1745790000 |
| SKU #: | 936112 |
| Dimensions: | 33 mm H x 34 mm W x 84.5 mm D |
| Finish: | Silver Passivated |
| Number of Positions: | 16+Ground |
| Series: | HE Series |
| Specifications: | SZ 6, 500 V, 16 A |
| Suitable For Use With: | RockStar Heavy Duty Connector |
| Connection type: | Tension Clamp/Female |
| Material: | PC Glass Fiber Reinforced |
| UNSPSC: | 32151901 |
| UPC: | 04008190985516 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$27.06 / Each
Typical price:$31.15 / Each
Quantity:
Weidmuller 1745790000 Electrical Plug
Brand: Weidmuller
Part Number: 1745790000
Additional Description: WEID-1745790000 HDC HE 24 FT CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 500 V, 16 A, NUMBER OF POLES: 24, TENSION-CLAMP CONNECTION, SIZE: 8
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1745790000 Item Features
- For the tension clamp connection, the wire connection level is designed as a tension clamp element
- As a result, it is virtually maintenance-free and a safe, permanent and vibrationproof connection is established
1745790000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #936112Part Number #1745790000UNSPSC32151901UPC04008190985516
Image provided may only be a representation of final product and may include optional equipment
