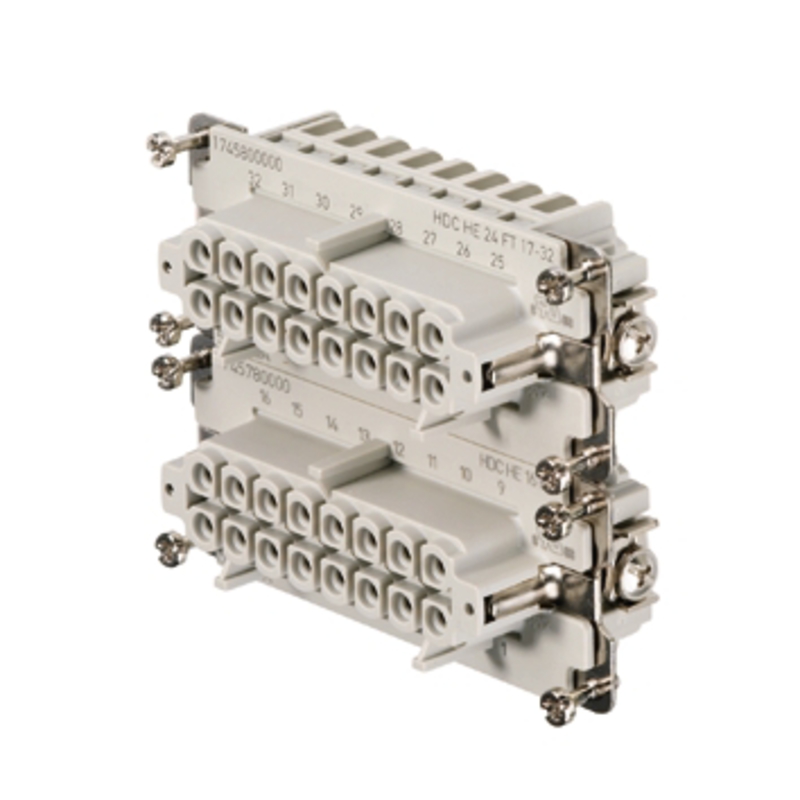

Weidmuller 1745800000 Bulkhead Pass Through Connector
Part Number # 1745800000
SKU # 2354448
1745800000
Weidmuller 1745800000 Bulkhead Pass Through Connector
Part Number # 1745800000
SKU # 2354448
$22.52 / Each
Typical price:$25.93 / Each
Weidmuller 1745800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1745800000 |
| SKU #: | 2354448 |
| Dimensions: | 33 mm H x 34 mm W x 111 mm D |
| Finish: | Silver Passivated |
| Number of Positions: | 24+Ground |
| Series: | HE Series |
| Specifications: | SZ 8, 500 V, 16 A |
| Suitable For Use With: | RockStar Heavy Duty Connector |
| Wire Size: | 24 to 14 AWG |
| Connection type: | Tension Clamp/Female |
| Material: | PC Glass Fiber Reinforced |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04008190985523 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.52 / Each
Typical price:$25.93 / Each
Quantity:
Weidmuller 1745800000 Bulkhead Pass Through Connector
Brand: Weidmuller
Part Number: 1745800000
Additional Description: WEID-1745800000 HDC HE 16 FT 17-32 CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 500 V, 16 A, NUMBER OF POLES: 16, TENSION-CLAMP CONNECTION, SIZE: 6
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1745800000 Item Features
- For the tension clamp connection, the wire connection level is designed as a tension clamp element
- As a result, it is virtually maintenance-free and a safe, permanent and vibrationproof connection is established
1745800000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2354448Part Number #1745800000UNSPSC32151901UPC04008190985523
Image provided may only be a representation of final product and may include optional equipment
