Weidmuller 1746750000 Electrical Terminal
Part Number # 1746750000
SKU # 972522
Weidmuller 1746750000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1746750000 |
| SKU #: | 972522 |
| Dimensions: | 2.894 in H x 0.394 in W x 1.949 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190996710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

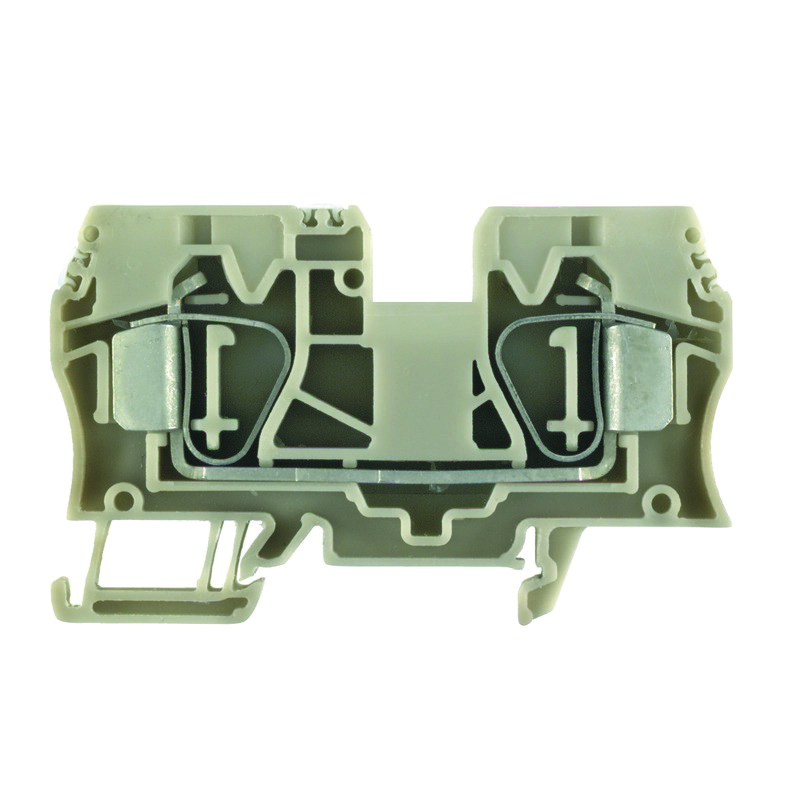

Weidmuller 1746750000 Electrical Terminal
Brand: Weidmuller
Part Number: 1746750000
Klippon® Feed-Through Terminal Block, 1-Tier Standard, Series: Z Series, 1000 VAC, 57 A, 16 to 6 AWG Wire, 18 mm Wire Strip Length, 10 sq-mm Terminal, Snap-On Mount, Tension Clamp, -50 to 120 deg C, Wemid, Dark Beige, 2.894 in H x 0.394 in W x 1.949 in D
Additional Description: WEID-1746750000 ZDU 10 FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 10 MM, 1000 V, 57 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1746750000 Application
For hazardous location1746750000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 1 x 5.5 mm blade
- 0.56 mOhm volume-resistance
- For plug-in cross-connector, one end without connector
- 8 kV rated impulse withstand voltage
- ZDU 10 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1746750000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #972522Part Number #1746750000UNSPSC39121410UPC04008190996710
Image provided may only be a representation of final product and may include optional equipment
