1746770000
Weidmuller 1746770000 Electrical Terminal
Part Number # 1746770000
SKU # 2118985
$175.75 / 25Each
Typical price:$195.33 / Each
Weidmuller 1746770000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1746770000 |
| SKU #: | 2118985 |
| Dimensions: | 2.894 in H x 0.398 in W x 1.949 in D |
| Terminal Size: | 10 sq-mm |
| UNSPSC: | 39121410 |
| UPC: | 04008190996734 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$175.75 / 25Each
Typical price:$195.33 / Each
Quantity:

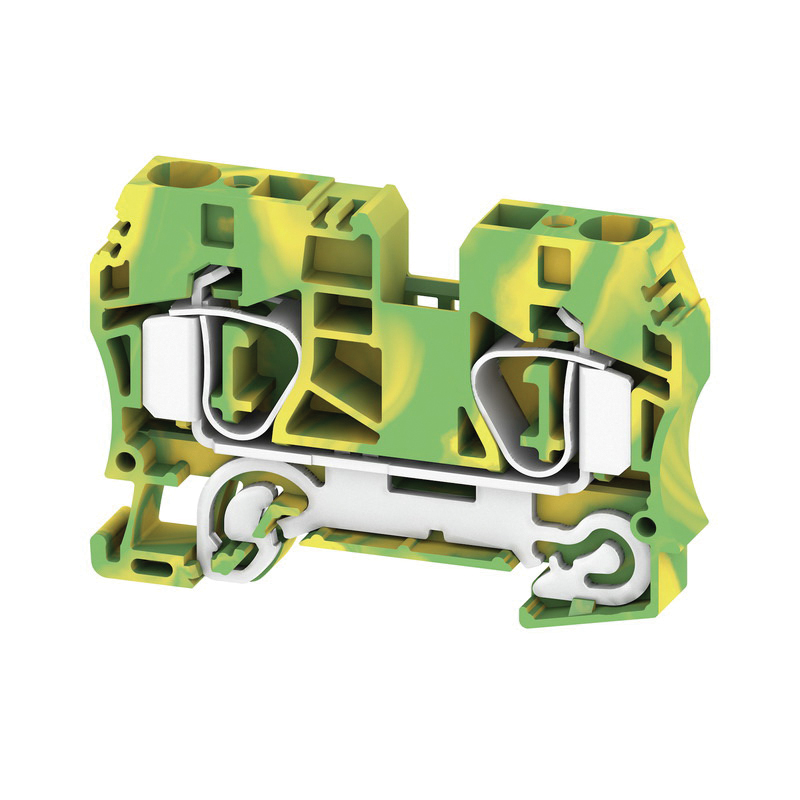

- Klippon Modular PE Terminal Block, 1-Tier Standard, Series: Z Series, 800 V AC, 16 to 6 AWG Wire, 18 mm Wire Strip Length, 10 sq-mm Terminal, Snap-Fit Mount, Tension Clamp, -50 to 120 deg C, Wemid, Green/Yellow, 2.894 in H x 0.398 in W x 1.949 in D
1746770000 Application
For hazardous location1746770000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 1 x 5.5 mm blade
- 0.56 mOhm volume-resistance
- One end without connector
- 8 kV rated impulse withstand voltage
- ZPE 10 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1746770000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2118985Part Number #1746770000UNSPSC39121410UPC04008190996734
Image provided may only be a representation of final product and may include optional equipment
