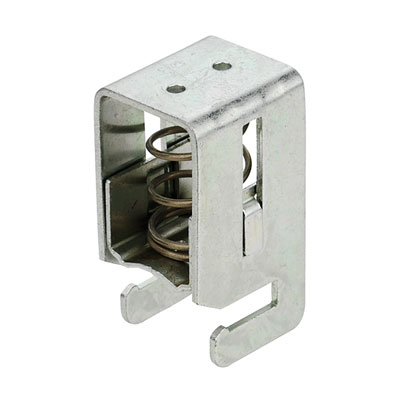

Weidmuller 1749151001 Klippon Clamping Yoke
Part Number # 1749151001
SKU # 2235188
$130.90 / 10Each
Typical price:$145.50 / Each
Weidmuller 1749151001 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1749151001 |
| SKU #: | 2235188 |
| Dimensions: | 29.5 mm H x 92.94 mm W x 26 mm D |
| Series: | TOP4G Series |
| Connection type: | Top |
| Material: | PA |
| UNSPSC: | 39121410 |
| UPC: | 04032248064441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$130.90 / 10Each
Typical price:$145.50 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: TOP4G Series, 300/1000 V, 30/32 A, 12 Pole, 26 to 10 AWG Wire, 13 mm Wire Strip Length, THT Solder Terminal, M3 Terminal, 7.62 mm Spacing, 0.5 to 0.6 N-m Torque, Through-Hole Mounting, Top Connection, -50 to 100 deg C, PA, Orange, 29.5 mm H x 92.94 mm W x 26 mm D Dimensions
1749151001 Item Features
- Conductor entry and screw connection in the same direction on this PCB terminal with 7.62 mm pitch for conductor cross-sections up to 6 sq-mm
- Conductor outlet direction 90 deg and 180 deg
- 1000 V IEC, 300 V UL
- 32 A IEC, 30 A UL
1749151001 Standards
RoHS Compliant|CSA 154685-1501716|UL File No. E60693 Recognized|EAC Certified|UL 94 V-2 Flammability Rating|UL 1059SKU #2235188Part Number #1749151001UNSPSC39121410UPC04032248064441
Image provided may only be a representation of final product and may include optional equipment
