1753290000
Weidmuller 1753290000 Electrical Terminal
Part Number # 1753290000
SKU # 2225901
$275.00 / 100Each
Typical price:$305.20 / Each
Weidmuller 1753290000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1753290000 |
| SKU #: | 2225901 |
| Amperage Rating: | 16 A |
| Dimensions: | 46.5 mm H x 3.5 mm W x 37.5 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M2 |
| Torque Rating: | 0.3 N-m |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 1.5 sq-mm |
| Connection type: | Screw |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248020751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$275.00 / 100Each
Typical price:$305.20 / Each
Quantity:

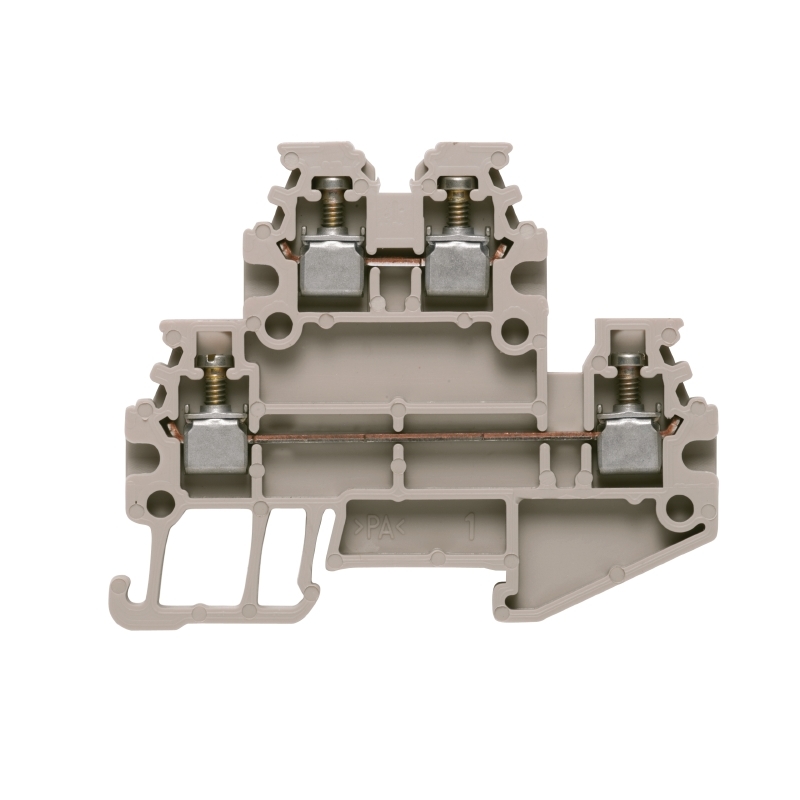

- Klippon Terminal Block, Double Tier Feed-Through Modular, Series: W Series, 400 V, 16 A, 1.5 sq-mm Wire, 7 mm Wire Strip Length, M2 Terminal, 0.3 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 46.5 mm H x 3.5 mm W x 37.5 mm D Dimensions
1753290000 Item Features
- Klippon connect with clamping yoke technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
1753290000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 12400-398|ATEX File No. KEMA99ATEX6545U|IECEX File No. IECEXULD15.0003U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|EAC Certified|IEC Ex Certified|KEMA-KEUR CertifiedSKU #2225901Part Number #1753290000UNSPSC39121410UPC04032248020751
Image provided may only be a representation of final product and may include optional equipment
