Part Number # 1763950000
SKU # 2177563
Image provided may only be a representation of
final product and may include optional equipment
1763950000

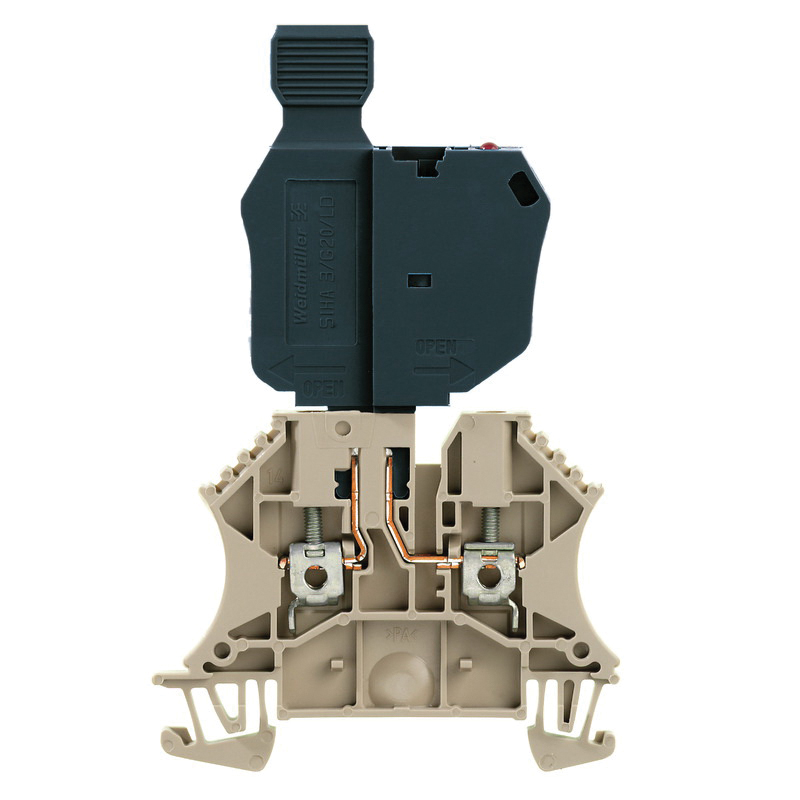

Weidmuller 1763950000 W Series Fuse Terminal Block, 36 VAC, 6.3 A, 22 to 12 AWG Wire, Snap-On Mount
Part Number # 1763950000
SKU # 2177563
Weidmuller 1763950000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1763950000 |
| SKU #: | 2177563 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 2.362 in H x 0.201 in W x 3.819 in D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | 2-1/2 sq-mm |
| Torque Rating: | 0.4 to 0.8 N-m |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248107742 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1763950000 W Series Fuse Terminal Block, 36 VAC, 6.3 A, 22 to 12 AWG Wire, Snap-On Mount
Brand: Weidmuller
Part Number: 1763950000
Klippon® Fuse Terminal Block, Series: W Series, 36 VAC, 6.3 A, 22 to 12 AWG Wire, 10 mm Wire Strip Length, 2-1/2 sq-mm Terminal, 0.4 to 0.8 N-m, Snap-On Mount, Screw, -50 to 120 deg C, Wemid, Dark Beige, 2.362 in H x 0.201 in W x 3.819 in D
Additional Description: WEID-1763950000 WTR 2.5/SI LD 36V FUSE TERMINAL, SCREW CONNECTION, FUSE ISOLATOR, WITH LED, FOR PLUG-IN CROSS-CONNECTOR, ONE END WITHOUT CONNECTOR, SCREW CONNECTION, 2.5 MM, 36 V, 6.3 A, G-SI. 5 X 20, DARK BEIGE 8731700000 & 7921570000
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
1763950000 Item Features
- Fuse isolator, with LED, for screwable cross connection, one end without connector
- TS 35 mounting rail
- Right open sides
- 2.5 sq-mm further connection, conductor cross-section, flexible plus plastic collar DIN 46228/1
- 0.6 x 3.5 mm blade
- On side connection direction
- 0.5 to 4 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 2.5 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- A3 gauge to IEC 60947-1
- 2 number of connections
- 1 torque level with DMS electric screwdriver
- 1 number of similar terminal
- 0.5 to 2.5 sq-mm minimum/maximum rated connection cross to section for connected conductor, finely stranded with wire to end ferrules and plastic collars DIN 46228/4
- 400 VAC rated voltage to adjoining terminal
- G-Si 5 x 20 cartridge fuse
- Pluggable fuse holder
- UL 94 flammability rating V-0
- 1.33 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity, WTR 2.5/SI LD 36V type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1763950000 Standards
CSA Certified|CE Certified|cURUS Listed|EAC|RoHS compliantSKU #2177563Part Number #1763950000UNSPSC39121410UPC04032248107742
