Weidmuller 1766320000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1766320000
SKU # 2193795
1766320000
Weidmuller 1766320000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1766320000
SKU # 2193795
$73.00 / 100Each
Typical price:$83.50 / Each
Weidmuller 1766320000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1766320000 |
| SKU #: | 2193795 |
| Amperage Rating: | 15/17.5 A |
| Dimensions: | 28.7 mm H x 11.16 mm W x 12.6 mm D |
| Series: | LM Series |
| Spacing: | 5.08 mm |
| Torque Rating: | 0.4 to 0.5 N-m |
| Connection type: | Clamping Yoke |
| UNSPSC: | 39121443 |
| UPC: | 04032248063765 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$73.00 / 100Each
Typical price:$83.50 / Each
Quantity:
Weidmuller 1766320000 Printed Circuit Board Pcb Press Fit Header Connector
Brand: Weidmuller
Part Number: 1766320000
Additional Description: WEID-1766320000 LM1N 5.08/02/90 3.5SN BK BX PCB TERMINAL, 5.08 MM, NUMBER OF POLES: 2, CONDUCTOR OUTLET DIRECTION: 90 , CLAMPING YOKE CONNECTION
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1766320000 Item Features
- Single and multi-row PCB terminal with proven clamping yoke connection at 5.08 mm pitch
- Suitable for conductor cross-sections up to 2.5 sq-mm
- 630 V IEC, 300 V UL
- 17.5 A IEC, 15 A UL
1766320000 Standards
RoHS Compliant|CSA 200039-1815154|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #2193795Part Number #1766320000UNSPSC39121443UPC04032248063765

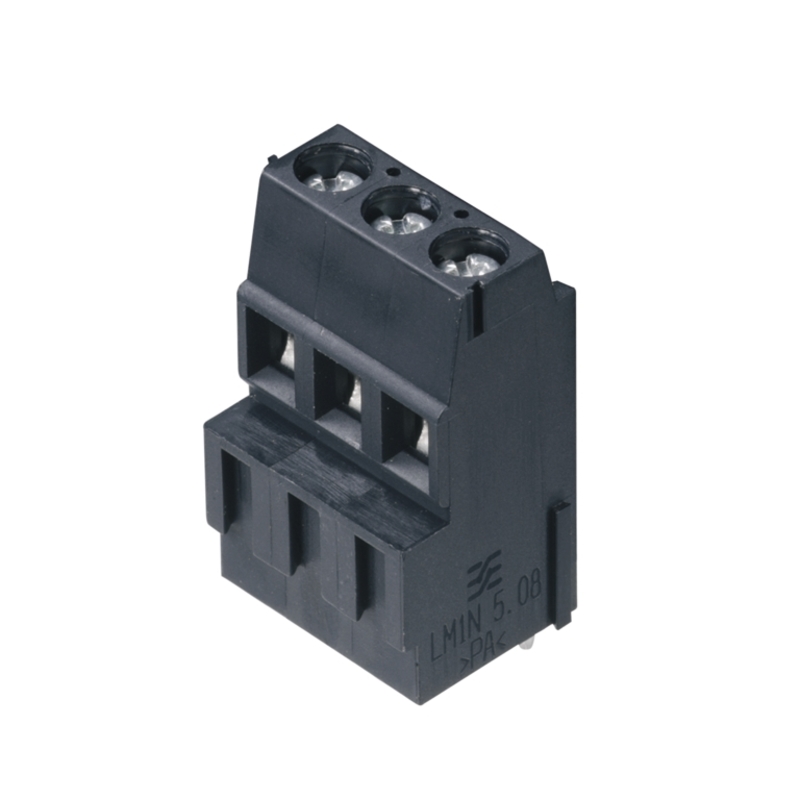

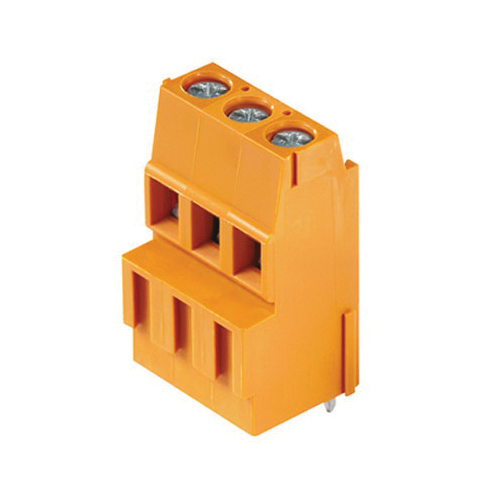

Image provided may only be a representation of final product and may include optional equipment
