Weidmuller 1766380000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1766380000
SKU # 2193805
1766380000
Weidmuller 1766380000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1766380000
SKU # 2193805
Weidmuller 1766380000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1766380000 |
| SKU #: | 2193805 |
| Dimensions: | 40.1 mm H x 16.24 mm W x 11.2 mm D |
| UNSPSC: | 39121443 |
| UPC: | 04032248063826 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1766380000 Printed Circuit Board Pcb Press Fit Header Connector
Brand: Weidmuller
Part Number: 1766380000
Weidmueller 1766380000 Terminal Block, PCB Connector, Voltage Rating: 300 V, 10 AMP, 1 Row, 5.08 MM Pitch, Wire Size: 24-12 AWG, Screw - Clamping Yoke, Tension Sleeve Connection, Black, -20 To 100 DEG C Operating Temperature, Material: Housing Material : Polyamide (PA66), Nylon 6/6, Contact Material - Plating : Brass - Tin Plated, 0.4 - 0.5 N-M Tightening Torque, ROHS Compliant
Additional Description: WEID-1766380000 LM1H 5.08/02/90 3.5SN BK BX PCB TERMINAL, 5.08 MM, NUMBER OF POLES: 2, CONDUCTOR OUTLET DIRECTION: 90 , CLAMPING YOKE CONNECTION
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1766380000 Item Features
- Low and high 1-row PCB terminal with proven clamping yoke connection at 5.08 mm pitch, conductor outlet direction 90 deg
- Suitable for conductor cross-sections up to 2.5 sq-mm
- 630 V IEC, 300 V UL
- 17.5 A IEC, 15 A UL
1766380000 Standards
RoHS Compliant|CSA 200039-1815154|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #2193805Part Number #1766380000UNSPSC39121443UPC04032248063826

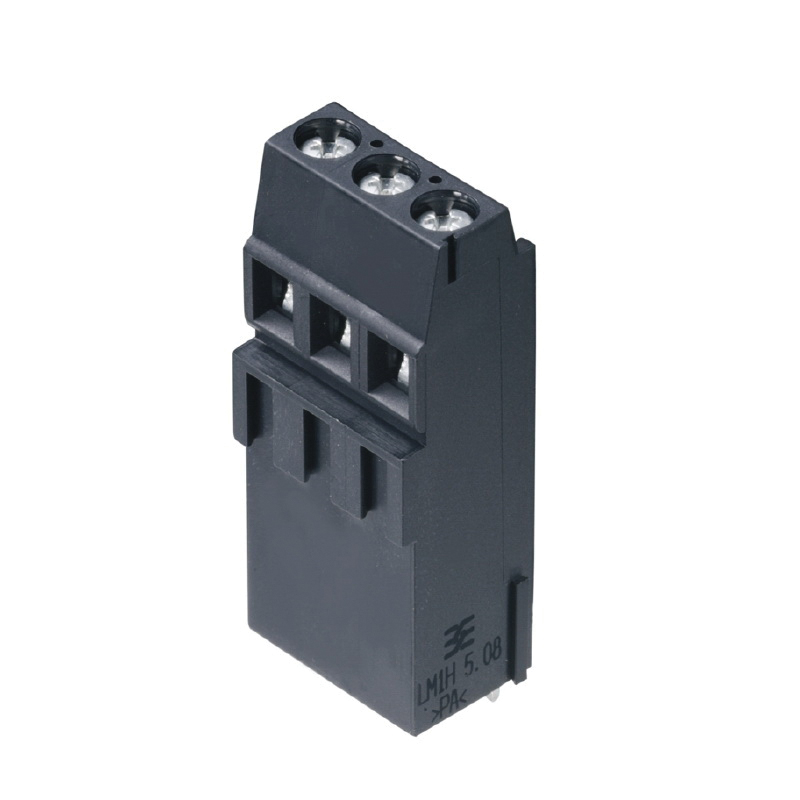

Image provided may only be a representation of final product and may include optional equipment
