Weidmuller 1766840000 Electrical Underground Bus Connector
Part Number # 1766840000
SKU # 2432300
1766840000
Weidmuller 1766840000 Electrical Underground Bus Connector
Part Number # 1766840000
SKU # 2432300
$396.80 / 50Each
Typical price:$456.80 / Each
Weidmuller 1766840000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1766840000 |
| SKU #: | 2432300 |
| Amperage Rating: | 10 A |
| Dimensions: | 20.2 mm H x 92.04 mm W x 11 mm D |
| Number of Poles: | 12 |
| Series: | LP |
| Spacing: | 0.3 in |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Type: | Screw Clamp Yoke |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | Wire Connection |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Clamping Yoke Screw |
| Country of origin: | DE |
| Material: | Copper Alloy |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121443 |
| UPC: | 04032248066582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$396.80 / 50Each
Typical price:$456.80 / Each
Quantity:
- Weidmuller, 1766840000, Printed Circuit Board Terminal, Wire Connection, Series: LP, 300 V, 10 A, 12 Pole, 26 to 12 AWG Wire, 6 mm Wire Strip Length, 0.3 in Spacing, 0.5 to 0.6 N-m Torque, Through-Hole Mounting, Clamping Yoke Screw Connection, -50 to 120 deg C, Copper Alloy, Orange, 20.2 mm H x 92.04 mm W x 11 mm D Dimensions
1766840000 Item Features
- This PCB terminal provides connections for 1000 V, 6 mm sq conductor cross-section and 32 A with proven clamping yoke connection at 7.50 mm and 7.62 mm pitch, conductor outlet direction in 90 deg and 180 deg design
1766840000 Standards
RoHS Compliant|CSA Certified|EAC Certified|UR ListedSKU #2432300Part Number #1766840000UNSPSC39121443UPC04032248066582

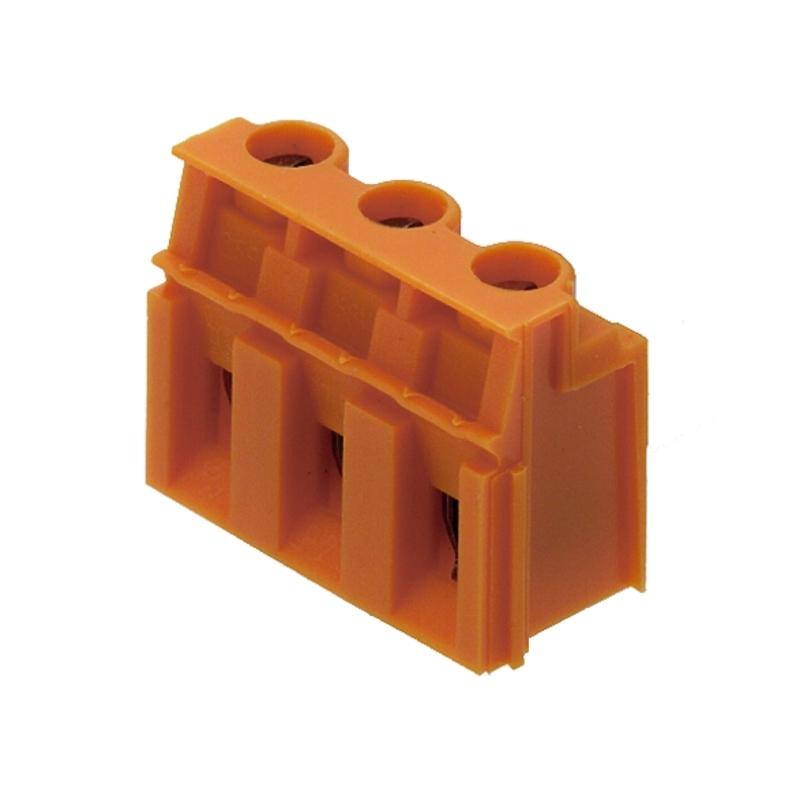

Image provided may only be a representation of final product and may include optional equipment
