1768800000
Weidmuller 1768800000 Terminal Blocks
Part Number # 1768800000
SKU # 2432481
$208.78 / 50Each
Typical price:$231.90 / Each
Weidmuller 1768800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1768800000 |
| SKU #: | 2432481 |
| Amperage Rating: | 20 A |
| Dimensions: | 79.5 mm H x 5.1 mm W x 53 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Double Tier Feed-Through Modular |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248114313 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.78 / 50Each
Typical price:$231.90 / Each
Quantity:

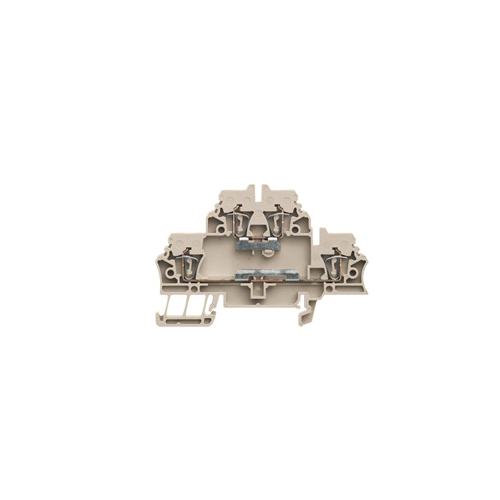

- Klippon Terminal Block, Double Tier Feed-Through Modular, Series: Z Series, 500 V, 20 A, 2.5 sq-mm Wire, 10 mm Wire Strip Length, Snap-Fit Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Beige, 79.5 mm H x 5.1 mm W x 53 mm D Dimensions
1768800000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1768800000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 12400-367|UL File No. E60693|IEC 60947-7-1|CE Certified|DNV Approved|EAC Certified|KEMA-KEUR Certified|UL/cULus File No. E60693|CSA File No. 12400-367SKU #2432481Part Number #1768800000UNSPSC39121410UPC04032248114313
Image provided may only be a representation of final product and may include optional equipment
