Weidmuller 1768850000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1768850000
SKU # 2344961
1768850000
Weidmuller 1768850000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1768850000
SKU # 2344961
$114.08 / 92Each
Typical price:$131.74 / Each
Weidmuller 1768850000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1768850000 |
| SKU #: | 2344961 |
| Dimensions: | 28.7 mm H x 18.78 mm W x 21.6 mm D |
| UNSPSC: | 39121443 |
| UPC: | 04032248115587 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$114.08 / 92Each
Typical price:$131.74 / Each
Quantity:

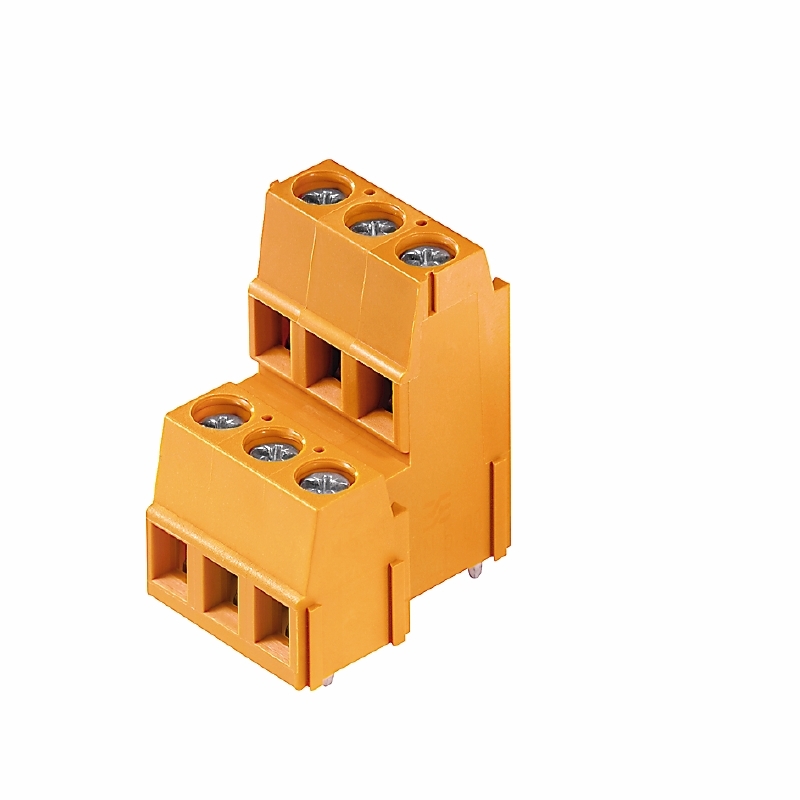

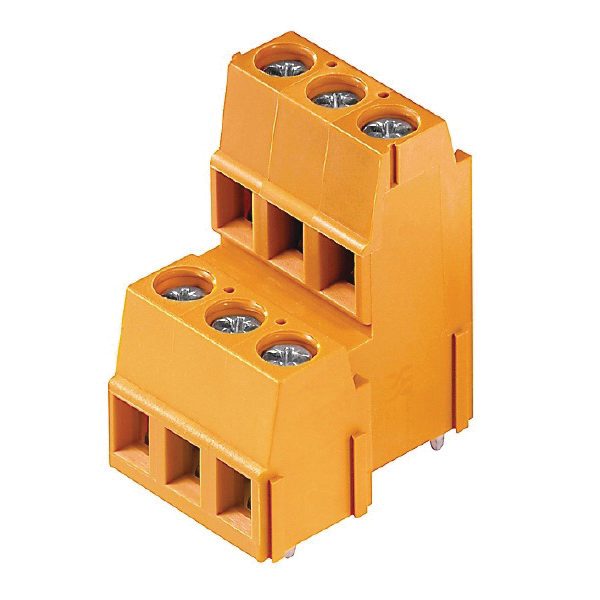

- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LM Series, 300/630 V, 15/17.5 A, 6 Pole, 24 to 14 AWG Wire, 6 mm Wire Strip Length, THT Solder Terminal, M2.5 Terminal, 5.08 mm Spacing, 0.4 to 0.5 N-m Torque, Through-Hole Mounting, Clamping Yoke Connection, -50 to 120 deg C, Wemid, Orange, 28.7 mm H x 18.78 mm W x 21.6 mm D Dimensions
1768850000 Item Features
- Single and multi-row PCB terminal with proven clamping yoke connection at 5.08 mm pitch
- Suitable for conductor cross-sections up to 2.5 sq-mm
- 630 V IEC, 300 V UL
- 17.5 A IEC, 15 A UL
1768850000 Standards
RoHS Compliant|CSA 200039-1815154|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #2344961Part Number #1768850000UNSPSC39121443UPC04032248115587
Image provided may only be a representation of final product and may include optional equipment
