Part Number # 1770360000
SKU # 1395551
Image Disclaimers Message
1770360000

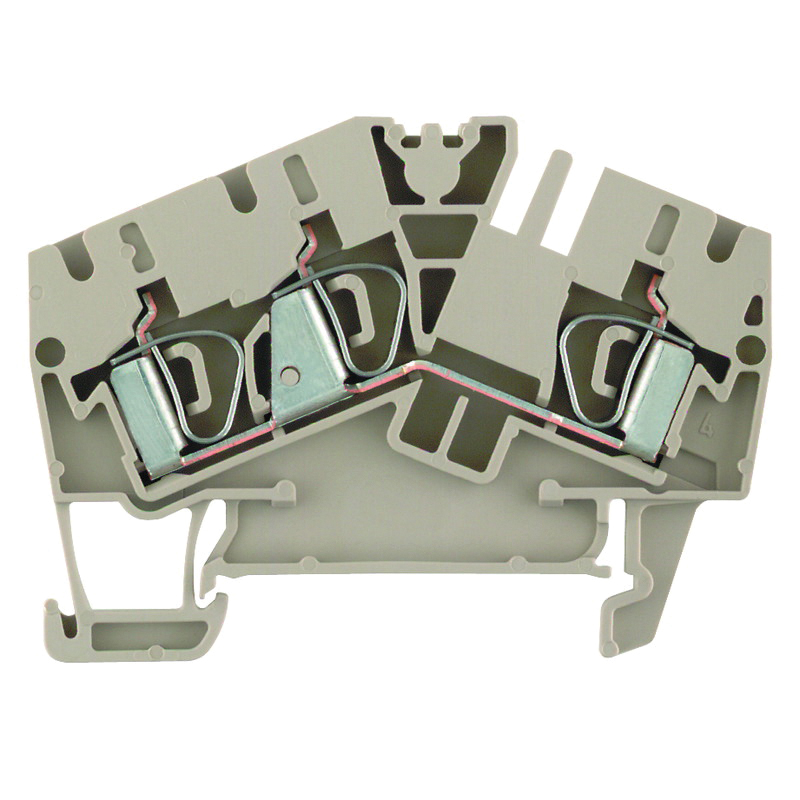

Weidmuller 1770360000 Electrical Terminal
Part Number # 1770360000
SKU # 1395551
$96.50 / 50ea
Typical price:$104.45 / ea
Weidmuller 1770360000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1770360000 |
| SKU #: | 1395551 |
| Amperage Rating: | 32 A |
| Dimensions: | 2.421 in H x 0.24 in W x 1.791 in D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | 4 sq-mm |
| Type: | 1-Tier Roof Style |
| Wire Size: | 26 to 10 AWG |
| Color: | Dark Beige |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248143191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.50 / 50ea
Typical price:$104.45 / ea
Quantity:
Weidmuller 1770360000 Electrical Terminal
Brand: Weidmuller
Part Number: 1770360000
Additional Description: WEID-1770360000 ZDU 4-2/3AN FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 3
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1770360000 Application
For hazardous location1770360000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 1 number of levels, 3 number of clamping points per level
- Explosion-tested version, right open sides
- 0.6 x 3.5 mm blade
- 1 mOhm volume-resistance
- For plug-in cross-connector, one end without connector
- 8 kV rated impulse withstand voltage
- ZDU 4-2/3AN type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1770360000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #1395551Part Number #1770360000UNSPSC39121410UPC04032248143191
