Part Number # 1770860000
SKU # 1399421
Image Disclaimers Message
Brand: Weidmuller
1770860000

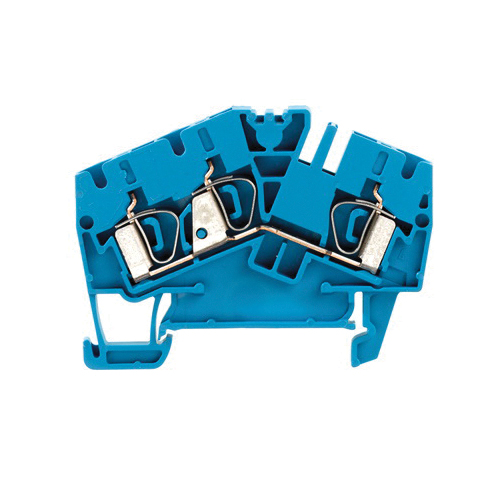

Weidmuller 1770860000 Electrical Terminal
Part Number # 1770860000
SKU # 1399421
$96.50 / 50Each
Typical price:$104.45 / Each
Weidmuller 1770860000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1770860000 |
| SKU #: | 1399421 |
| Amperage Rating: | 28/32/33/35, 28/32/33/35 A |
| Dimensions: | 61.5 mm H x 6.1 mm W x 45.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120, -50 to 120 deg C |
| Type: | 1-Tier Feed-Through Roof Style |
| Wire Size: | 26 to 10, 26 to 10 AWG |
| Color: | Blue |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-On/DIN Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248121205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.50 / 50Each
Typical price:$104.45 / Each
Quantity:
Weidmuller 1770860000 Electrical Terminal
Brand: Weidmuller
Part Number: 1770860000
Additional Description: WEID-1770860000 ZDU 4-2/3AN BL FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 3
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1770860000 Specifications
- Tension clamp technology is a universal contact system for all common conductor connection types
1770860000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 32 A IEC, 28 A EN 60079-7, 33 A UL and 35 A CSA
1770860000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1152892|ATEX DEMKO16ATEX1808U|IECEX IECEXULD16.0036U|UL 94 V-0 Flammability Rating|CE Certified|DNV-GL Approved|EAC Certified|KEMAEUR Certified|RINA 1861|IEC 60947-7-1SKU #1399421Part Number #1770860000UNSPSC39121410UPC04032248121205
