Brand: Weidmuller

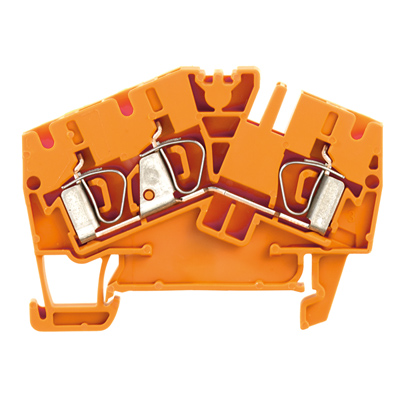

Weidmuller 1770870000 Electrical Terminal
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1770870000 Electrical Terminal
Brand: Weidmuller
Weidmuller 1770870000 Electrical Terminal
Part #:1770870000
SKU #: 2371366
$95.00/50EA
Key Features
Part #:1770870000
SKU #: 2371366
Brand: Weidmuller
Amperage Rating: 28/32/33/35 A
Dimensions: 61.5 mm H x 6.1 mm W x 45.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: 1-Tier Feed-Through Roof Style
$95.00/50EA
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 32 A IEC, 28 A EN 60079-7, 33 A UL and 35 A CSA
Specifications
Brand: Weidmuller
Amperage Rating: 28/32/33/35 A
Dimensions: 61.5 mm H x 6.1 mm W x 45.5 mm D
Series: Z Series
Temperature Rating (Degrees F): -50 to 120 deg C
Type: 1-Tier Feed-Through Roof Style
Voltage Rating: 550/600/800 V
Wire Size: 26 to 10 AWG
Color: Orange
Connection type: Tension Clamp
Material: Wemid
Mounting type: Snap-On/DIN Rail
UNSPSC: 39121410
UPC: 04032248121311
Weidmuller 1770870000 Electrical Terminal
Additional Description: WEID-1770870000 ZDU 4-2/3AN OR FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 3
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
