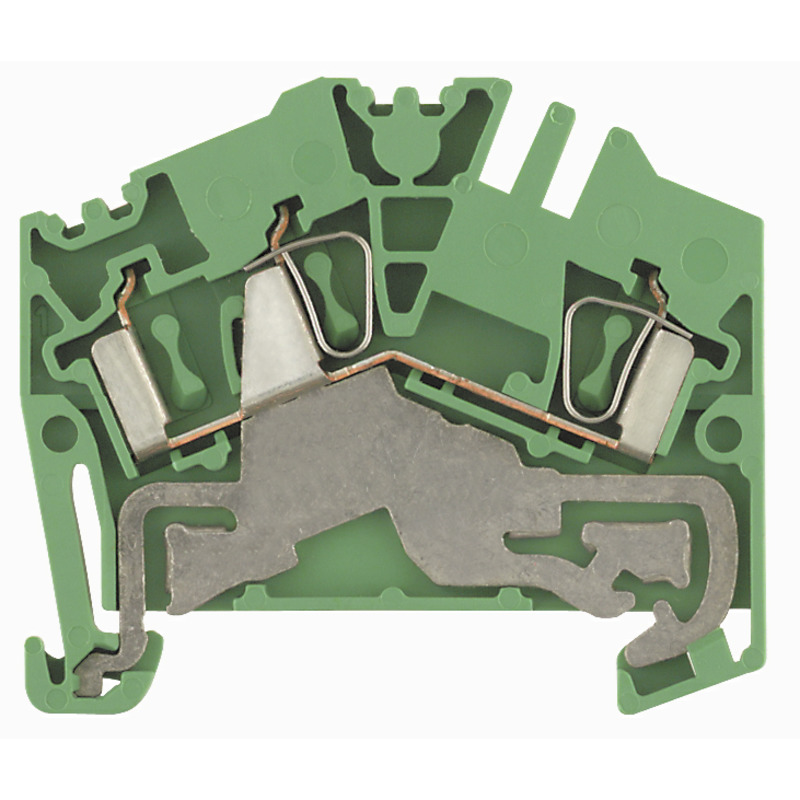

Weidmuller 1772090000 Klippon Pe Terminal Block
Part Number # 1772090000
SKU # 2142188
Weidmuller 1772090000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1772090000 |
| SKU #: | 2142188 |
| Dimensions: | 50.5 mm H x 5.1 mm W x 43.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Standard |
| Wire Size: | 2.5 sq-mm |
| Color: | Green/Yellow |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248128730 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

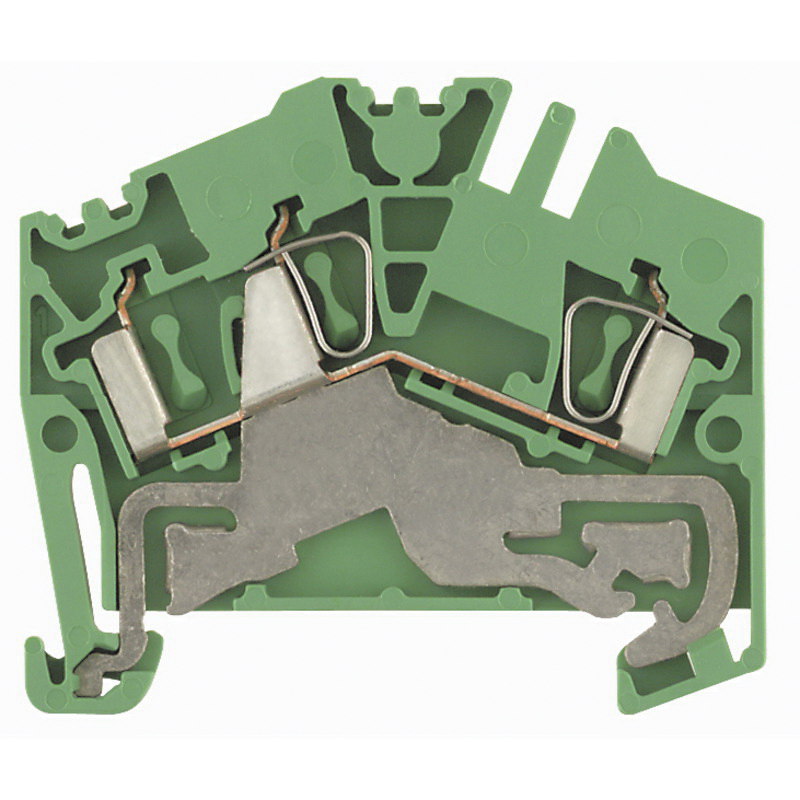

Weidmuller 1772090000 Klippon Pe Terminal Block
Brand: Weidmuller
Part Number: 1772090000
Klippon PE Terminal Block, Standard, Series: Z Series, 800 V, 2.5 sq-mm Wire, 10 mm Wire Strip Length, Snap-On Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Green/Yellow, 50.5 mm H x 5.1 mm W x 43.5 mm D Dimensions
Additional Description: WEID-1772090000 ZPE 2.5-2 PE TERMINAL, TENSION-CLAMP CONNECTION, 2.5 MM, 800 V, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW
Catalog Description: Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1772090000 Includes
01772090000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1772090000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|UL/cULus File No. E60693|CSA File No. 200039-1152892|ATEX File No. DEMKO16ATEX1808U|IECEX File No. IECEXULD16.0036U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G D|CE Certified|DNV-GL Approved|EAC Certified|IEC Ex CertifiedSKU #2142188Part Number #1772090000UNSPSC39121410UPC04032248128730
