1775490000
Weidmuller 1775490000 Electrical Terminal
Part Number # 1775490000
SKU # 2243619
$125.00 / 100Each
Typical price:$139.20 / Each
Weidmuller 1775490000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1775490000 |
| SKU #: | 2243619 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 2.028 in H x 0.138 in W x 1.437 in D |
| Terminal Size: | 1.5 sq-mm |
| Wire Size: | 16 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04032248181476 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$125.00 / 100Each
Typical price:$139.20 / Each
Quantity:

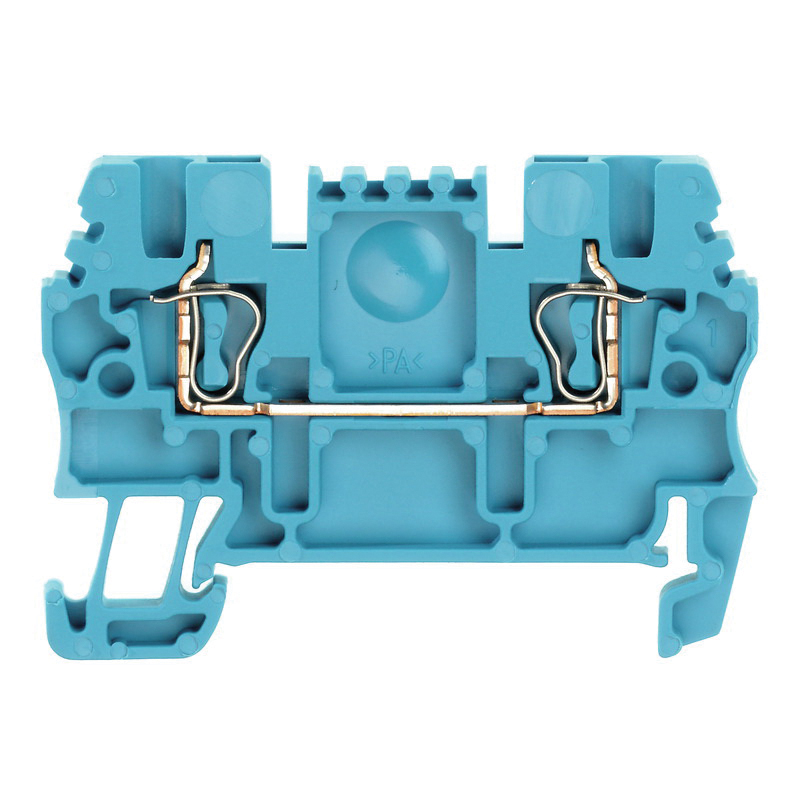

- Klippon Feed-Through Terminal Block, 1-Tier Standard, Series: Z Series, 500 V AC, 17.5 A, 16 AWG Wire, 10 mm Wire Strip Length, 1.5 sq-mm Terminal, Snap-Fit Mount, Tension Clamp, -50 to 120 deg C, Wemid, Blue, 2.028 in H x 0.138 in W x 1.437 in D
1775490000 Application
For hazardous location1775490000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right open sides
- 0.4 x 2 mm blade
- 1.83 mOhm volume-resistance
- For screwable cross-connection, one end without connector
- 6 kV rated impulse withstand voltage
- ZDU 1.5 BL type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1775490000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2243619Part Number #1775490000UNSPSC39121410UPC04032248181476
Image provided may only be a representation of final product and may include optional equipment
