1775530000
Weidmuller 1775530000 Electrical Terminal
Part Number # 1775530000
SKU # 2220382
$149.00 / 100Each
Typical price:$165.60 / Each
Weidmuller 1775530000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1775530000 |
| SKU #: | 2220382 |
| Amperage Rating: | 15/17.5/20 A |
| Dimensions: | 63.5 mm H x 3.5 mm W x 36.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Feed-Through Standard |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248181490 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$149.00 / 100Each
Typical price:$165.60 / Each
Quantity:

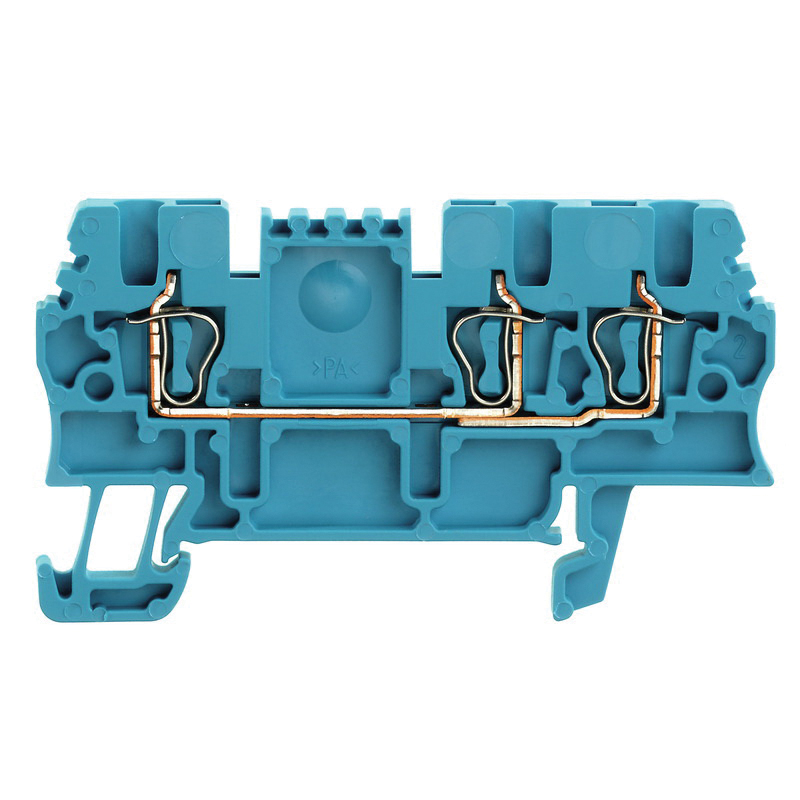

- Klippon Terminal Block, 1-Tier Feed-Through Standard, Series: Z Series, 300/500/550 V, 15/17.5/20 A, 26 to 14 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Blue, 63.5 mm H x 3.5 mm W x 36.5 mm D Dimensions
1775530000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 500 V IEC, 550 V EN 60079-7, 300 V UL and CSA
- 17.5 A IEC, 15 A EN 60079-7, UL and 20 A CSA
1775530000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1152892|UL 94 V-0 Flammability Rating|ATEX KEMA01ATEX2106U|IECEX IECEXULD05.0009U|CE Certified|cULusEX Listed|Lloyds Register Certified|IEC 60947-7-1SKU #2220382Part Number #1775530000UNSPSC39121410UPC04032248181490
Image provided may only be a representation of final product and may include optional equipment
