Part Number # 1775580000
SKU # 2213891
Image Disclaimers Message
1775580000

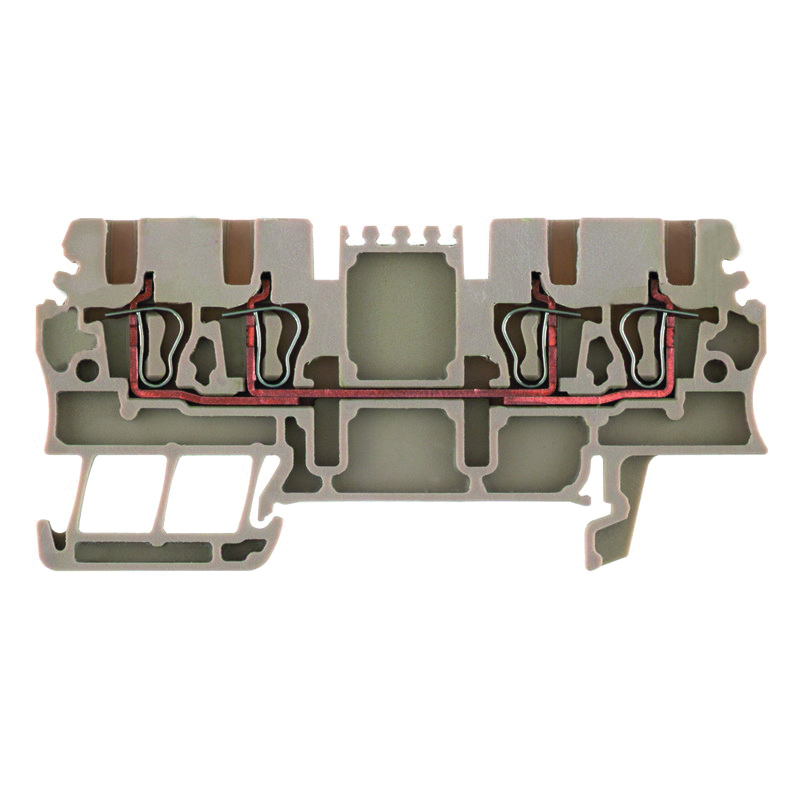

Weidmuller 1775580000 Klippon Terminal Block
Part Number # 1775580000
SKU # 2213891
Weidmuller 1775580000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1775580000 |
| SKU #: | 2213891 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 75.5 mm H x 3.5 mm W x 36.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Feed-Through |
| Wire Size: | 1.5 sq-mm |
| Color: | Dark Beige |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248181629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1775580000 Klippon Terminal Block
Brand: Weidmuller
Part Number: 1775580000
Klippon Terminal Block, Feed-Through, Series: Z Series, 500 V, 17.5 A, 1.5 sq-mm Wire, 10 mm Wire Strip Length, Snap-On Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Dark Beige, 75.5 mm H x 3.5 mm W x 36.5 mm D Dimensions
Additional Description: WEID-1775580000 (D) ZDU 1.5/4AN FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 1.5 MM, 500 V, 17.5 A, NUMBER OF CONNECTIONS: 4
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
1775580000 Includes
01775580000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1775580000 Standards
RoHS Compliant|UL/cULus File No. E60693|CSA File No. 200039-1152892|EAC Certified|cULus Ex Recognized|ATEx Certified|DNV-GL Approved|IEC Ex Certified|INMETRO Certified|Ex ATEX KEMA Certified|Lloyds Register|RMRS Certified|UL 94 V-0 Flammability Rating|ATEX File No. KEMA01ATEX2106U|IECEX File No. IECEXULD15.0008U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2213891Part Number #1775580000UNSPSC39121410UPC04032248181629
