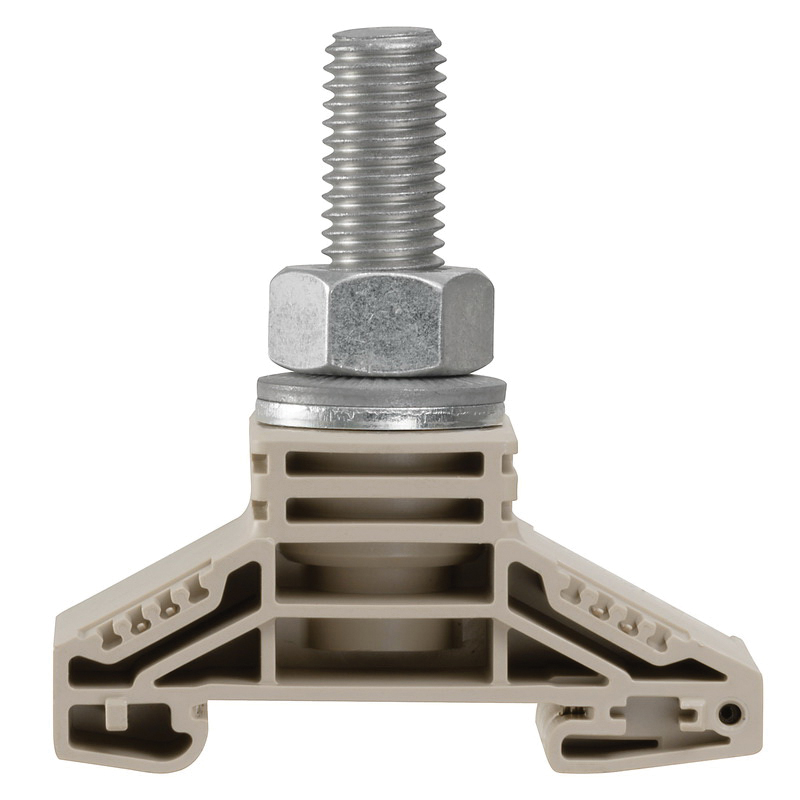

Weidmuller 1780870000 Electrical Terminal
Weidmuller 1780870000 Electrical Terminal
Part #:1780870000
SKU #: 2195811
$252.60/20EA
Key Features
Part #:1780870000
SKU #: 2195811
Brand: Weidmuller
Amperage Rating: 255/269/320 A
Dimensions: 67 mm H x 33.8 mm W x 72.5 mm D
Series: WF Series
Temperature Rating (Degrees F): -50 to 120 deg C
Terminal Size: M10
$252.60/20EA
- Stud terminals are an established, robust connection alternative for particularly harsh environments
- The extensive accessories and quality workmanship ensure high productivity in planning and installation and sustainable safety in operation
- 1000 V IEC, UL and CSA
- 269 A IEC, 255 A UL and 320 A CSA
Specifications
Brand: Weidmuller
Amperage Rating: 255/269/320 A
Dimensions: 67 mm H x 33.8 mm W x 72.5 mm D
Series: WF Series
Temperature Rating (Degrees F): -50 to 120 deg C
Terminal Size: M10
Torque Rating: 10 to 20 N-m
Type: Feed-Through
Voltage Rating: 1000 V
Wire Size: 10 AWG to 250 kcmil
Color: Dark Beige
Connection type: Threaded/Stud
Material: Wemid
Mounting type: Snap-On
UNSPSC: 39121410
UPC: 04032248219353
Weidmuller 1780870000 Electrical Terminal
Additional Description: WEID-1780870000 WF 10 STUD TERMINAL, THREADED STUD CONNECTION, 120 MM, 1000 V, 269 A, NUMBER OF CONNECTIONS: 1, M 10, TS 35, DARK BEIGE
Catalog Description: Terminal for current transmission. The conductor to be connected is crimped with a cable lug and fastened to the threaded bolt of the terminal.
